AiR PACE

Platform

• • CPU: ARM Cortex A53 1.35GHz Dual Core
  • DRAM: 1GB DDR3 Memory
  • Storage Pre-installed: 8GB eMMC
  • Storage Slot: MicroSD Slot x 1 for SD 3.0 (SDXC) Compliant Storage Expansion

Cellular

• Standards
  • 4G LTE: FDD-LTE, TDD-LTE, Transfer rate (max): LTE FDD: 150Mbps down; 50Mbps up; LTE TDD: 130Mbps down; 35Mbps up
  • 3G: WCDMA, Transfer rate (max): 42Mbps down; 5.76Mbps up
  • 2G: GSM/EDGE, Edge Transfer rate (max): 236.8Kbps down & up
• SIM Slot
  • 2 x microSIM card slots

LoRa (*AiR PACE 1-XX-CL Series)

• Frequency Band
  • 863-870MHz (EU/EU868), 920-925MHz (APAC/AS923)* Japan Excluded
• Specification
  • 8-channel LoRa Gateway module
  • Max. Output Power: 14dBm (EU868), 20dBm (AS923)
  • Sensitivity: -137dBm@293bps (SF=12, 125k Bandwidth)

Ethernet

• Standards
  • IEEE 802.3 10/100/1000BASE-T
  • IEEE 802.3u 100BASE-T(X)
  • IEEE 802.3ab 1000BASE-T(X)
  • IEEE 802.1x Flow control
  • Full/Half duplex mode
  • Auto MDI/MDI-X connection
  • Auto negotiation speed
• Ports
  • 1 x RJ-45 GbE (WAN/LAN Configurable) +2 x RJ-45 GbE

Serial

• Ports
  • 1 x RS-232/RS485 (4-pin Terminal Block)
• Signal
  • RS-232: TxD, RxD, GND
  • RS-485: D-/A, D+/B, GND

I/O

• Analog Input
  • 2 x AI
  • Conversion: 12bit ADC
  • Input Range: 0-10V
  • Resolution: 2.5mV
• Digital Input
  • 2 x DI (Isolated, “Logic 0”: 0-2V, “Logic 1”: 5-30V)
• Digital Output
  • 2 x DO (Isolated, Non-Relayed Output, 24V/300mA for each port)
• Connector
  • 10-pin Terminal Block

USB

• Standards
  • USB 2.0 Host
• Ports
  • 1 x USB Type A

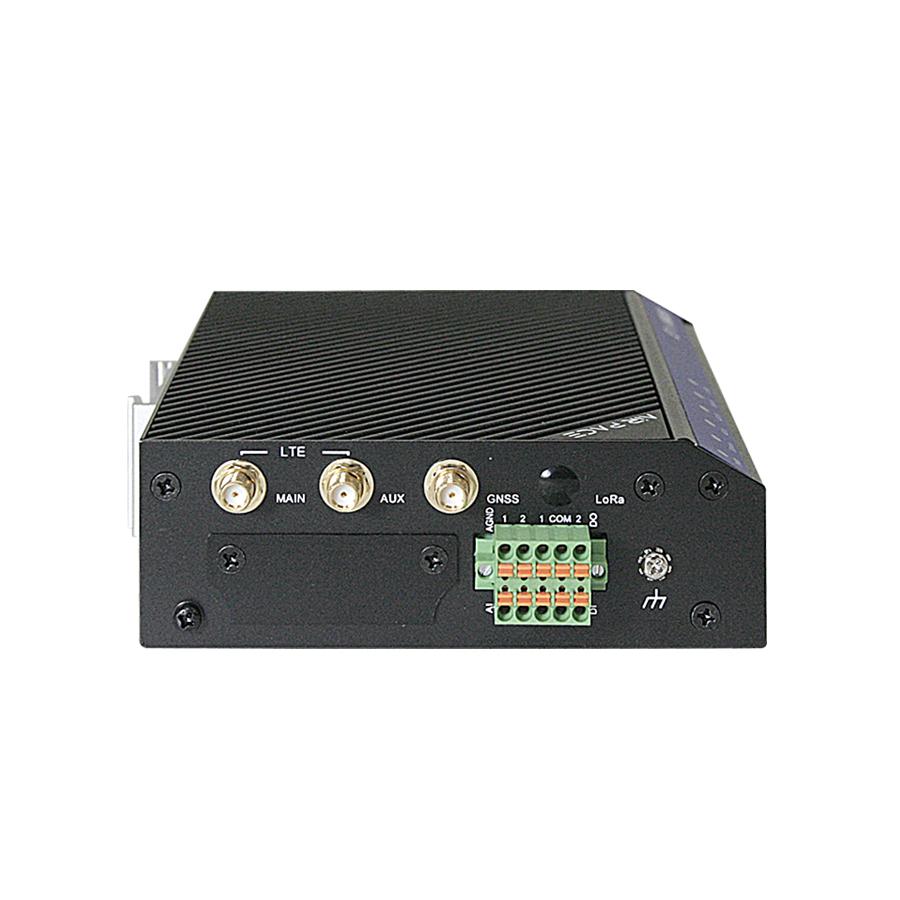

Antennas

• Cellular
  • 2 x SMA Female (Main & Aux.)
• GNSS
  • 1 x SMA Female
• LoRa (*For AiR PACE 1-XX-CL Series Only)
  • 1 x SMA Female

LED Indicators

• System
  • PWR x 1; Status x 1
• Data
  • LAN1, LAN2, LAN3/WAN, 4G1L, Serial, LoRa* (*LoRa Model Only)
• Cellular Signal
  • 4G1S

Power

• Input
  • 9-36VDC
  • AiR PACE 1-XX-CX: 14.5Watts (Max.), 8.5Watts (Typical)
  • AiR PACE 1-XX-CL: 17Watts (Max.), 11Watts (Typical)

Physical

• Casing Material
  • Metal Case
• IP Rating
  • IP30
• Dimension
  • 40 x 117.8 x 161.3mm (W x D x H)
  • 40 x 127.4 x 161.3mm with DIN-Rail kit (W x D x H)
• Weight
  • 0.76kg (1.67lbs)
• Installation Type
  • DIN-Rail mounting
  • Wall mounting Bracket* (*Optional)

Environment Limits

• Operating Temp.
  • -30 to 70°C (-22 to 158°F)
• Storage Temp.
  • -40 to 85°C (-40 to 185°F)
• Relative Humidity
  • 5% to 95% (non-condensing)

Regulatory Approvals

• Safety
  • EN 60950-1
  • EN 62368-1: 2014
• Emissions/Immunity
  • CE/NCC BSMI/iDA
