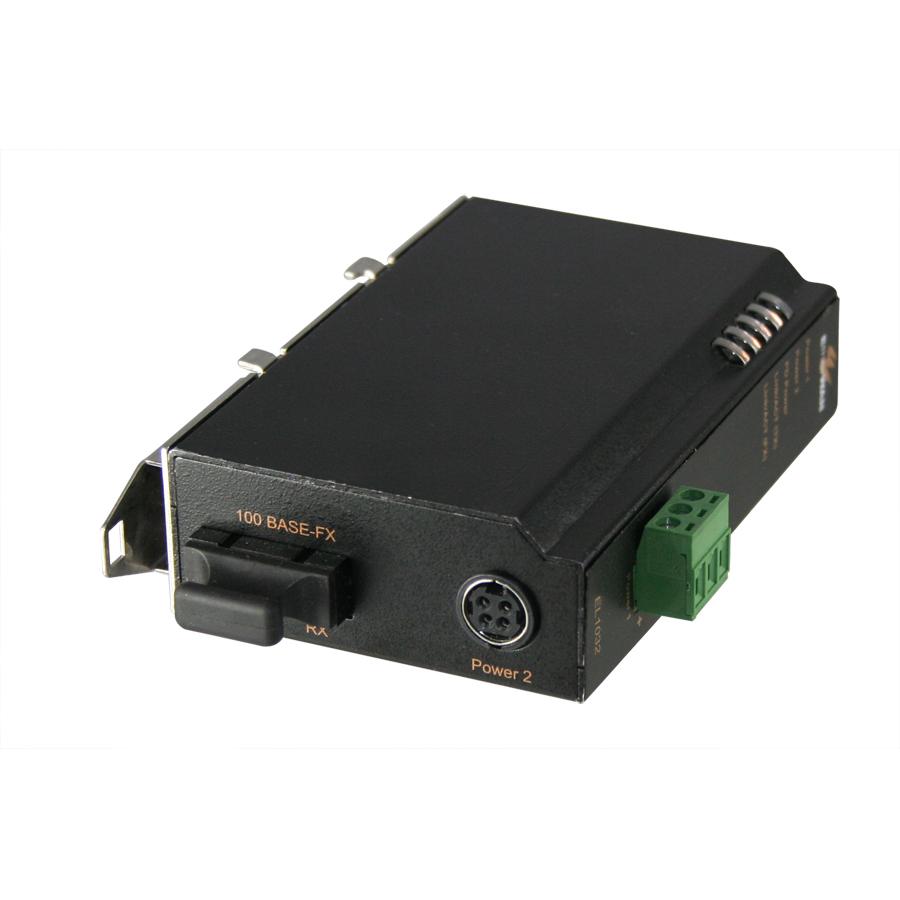

The EL1032T Series provides media conversion between 10/100BASE-T(X) and 100BASE-FX Fiber. Through DIP switch selection, Link-Fault-Pass-Through (LFPT) function can be active or disabled. EL1032T supports IEEE 802.3at PoE/PSE standard and can transmit power and data over one RJ45 cable. The EL1032T’s industrial design features high shock/vibration resistance, electrical noise immunity and a wide operating temperature range from -10 to 60°C. EL1032T is the ideal media converter for industrial environments.
Technology
Standards
- • IEEE 802.3 10BASE-T
- • IEEE 802.3u 100BASE-TX/FX
- • IEEE 802.3af/at PoE/PSE
Forward and Filtering Rate
- • 14,880pps for 10Mbps
- • 148,810pps for 100Mbps
Packet Buffer Memory
- • 228Kb
Processing Type
- • Store-and-Forward
- • Auto Negotiation
- • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
- • Auto MDI/MDIX
Power
Input Voltage
- • 48-57VDC
Power Consumption
- • Device: Max. 3.6W (without PoE)
- • PoE power budget: 30W Max. (depends on power input)
PoE Power Output
- • IEEE 802.3at: up to 30W/port, 50-57VDC, 500mA Max.
Protection
- • Overload current protection
- • Reverse polarity protection
Mechanical
Casing
- • Aluminum Case
Dimensions
- • 70 x 110 x 30mm (W x D x H)
(2.76″ x 4.33″ x 1.18″)
Weight
- • 0.25Kg (0.55lb.)
Installation
- • DIN-Rail (top hat type 35mm), Panel, or Wall mounting
Interface
Ethernet Port
- • 10/100BASE-TX: 1 port
- • 100BASE-FX: 1 port
LED Indicators
- • Per Unit: Power
- • Per 10/100TX Port: Link/ACT, full-duplex/collision
- • Per 100FX Port: Link/ACT
- • PoE: PD connect/PD disconnect
Environment
Operating Temperature
- • -10 to 60°C (14 to 140°F)
Tested @ -20 to 70°C (-4 to 158°F)
Storage Temperature
- • -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- • 5% to 95% (non-condensing)
Regulatory Approvals
ISO
- • Manufactured in an ISO 9001 facility
EMI
- FCC Part 15B Class A
- EN 61000-6-4
- EN 55022
EMS
- EN 61000-6-2
- • EN 61000-4-2 (ESD Standards)
- • EN 61000-4-3 (Radiated RFI Standards)
- • EN 61000-4-4 (Burst Standards)
- • EN 61000-4-5 (Surge Standards)
- • EN 61000-4-6 (Induced RFI Standards)
- • EN 61000-4-8 (Magnetic Field Standards)
Environmental Test Compliance
- IEC 60068-2-6 Fc (Vibration Resistance)
- IEC 60068-2-27 Ea (Shock)
- FED STD 101C Method5007.1 (Free fall w/package)
