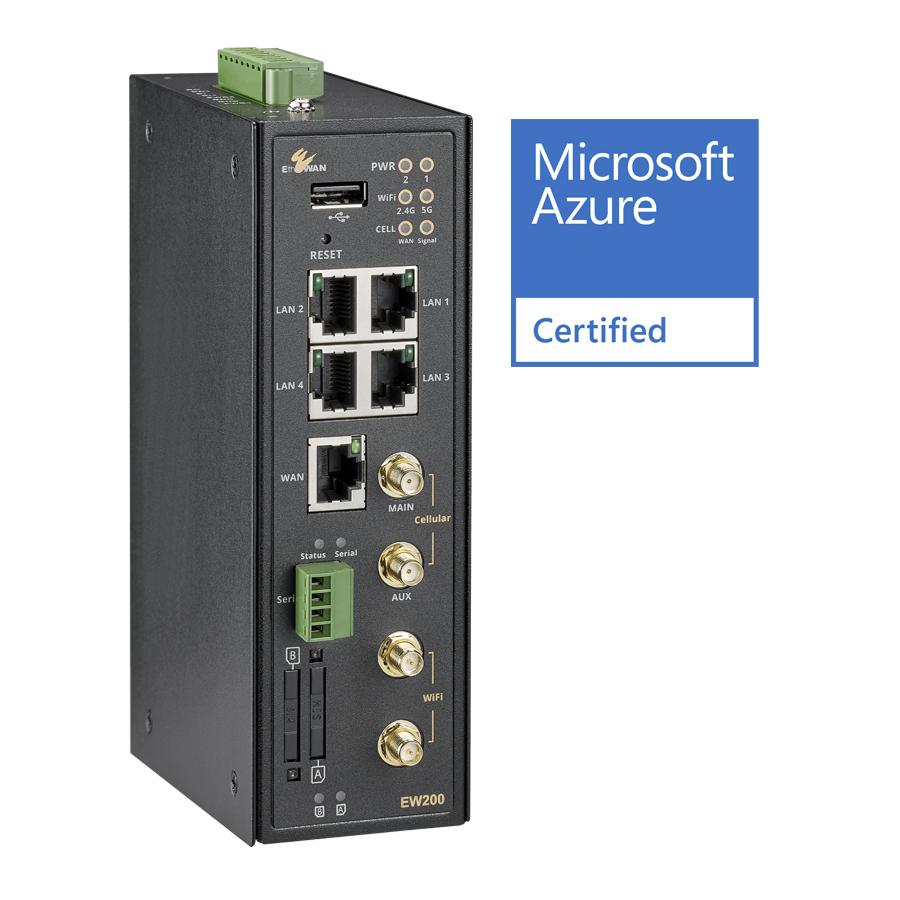

The EW200 is an intelligent industrial grade gateway that combines IEEE 802.11b/g/n/ac WLAN and 4G LTE cellular technologies designed for critical infrastructure and industrial applications. It offers flexible connectivity over cellular and Wireless LAN for harsh environments, giving operations and IT real-time awareness with remote monitoring. It allows up to 4 Ethernet device links and provides dual SIM cards for failover redundancy to ensure uninterrupted connectivity. The EW200 is a certified Microsoft Azure IoT Device.
Moreover, it delivers best-in-class multi path connectivity with Wireless, Ethernet, serial, and digital I/O to satisfy most applications. Global LTE options make it easy to get connected.
-
Cellular Interface
- Standards
- • Cellular Frequency Bands: (Please see order information for optional band)
- • LTE Cat. 4: FDD-LTE, TDD-LTE, Transfer rate (max):
LTE FDD: 150Mbps down; 50Mbps up
LTE TDD: 130Mbps down; 35Mbps up - • 3G: WCDMA, Transfer rate (max): 42Mbps down; 5.76Mbps up
- • 2G: GSM/EDGE, Edge Transfer rate (max): 236.8Kbps down & up
- Antenna connector
- • 2 x SMA Female
- SIM Slot
- • 2
WLAN Interface
- WiFi
- • 802.11 a/b/g/n/ac 2T2R (2.4G/5GHz selectable)
- Frequency Band
- • Europe CE 2.4GHz (13 channels) 5GHz (4 channels)
- • America FCC 2.4GHz (11 channels) 5GHz (9 channels)
- • Taiwan NCC 2.4GHz (11 channels) 5GHz (9 channels)
- • Singapore iDA 2.4GHz (13 channels) 5GHz (9 channels)
- • Japan TELEC & JATE 2.4GHz (13 channels) 5GHz (19 channels)
- Encryption Security
- • WEP, WPA 1/2-PAK & WPA 1/2 (8 x VAP/SSID)
- Antenna Connector
- • 2 x SMA Male
Ethernet
- Standards
- • IEEE 802.3 10Base-T
- • IEEE 802.3u 100BASE-TX/100BASE-FX
- • IEEE 802.3ab 1000BASE-T
- • IEEE 802.1x, Full duplex flow control
- Ports
- • 1 x RJ45 GE (WAN/LAN configurable) +4 x RJ45 GE
- Physical Layer
- • 10/100/1000Base-T
Serial
- Ports
- • 1 x RS232/RS485
I/O
- DI/DO
- • 1 x Digital In (“Logic 0”: 0-2V, “Logic 1”: 5V-30V)
1 x Digital Out (Relay Mode, up to 30V/1A)
USB
- Standards
- • USB 2.0
- Ports
- • 1 x USB Type A
Functions
- WiFi LAN
- • AP Router, WDS, WDS Hybrid Modes
- VLAN
- • Port-based, Tag-based VLAN
- Port Forwarding
- • Virtual Server/Computer, DMZ Host, PPTP/L2TP/IPSec Pass-through
- Routing
- • Static, Dynamic: RIP1/RIP2, OSPF, BGP
- QoS
- • Policy-based Bandwidth Control and Packet Flow Prioritization
- VPN
- • IPSec, OpenVPN, PPTP, L2TP, GRE
- Firewall
- • SPI Firewall with Stealth Mode, IPS
- Event Engine/Event Handling
- • Managing/Notifying Events: DI, DO, Modbus, SMS, Syslog, SNMP Trap, Email Alert, Reboot
- Device Management Solution
- • eVue (Q1, 2019)
Field Communication
- Virtual COM
- • RFC2217, TCP Client, TCP Server, UDP
- Modbus
- • Gateway for Modbus TCP, Modbus RTU/ASCII Master/Slave Access
- • Slave for Device Status/Information Access
- Data Interchange
- • OPC UA Server, MQTT Broker, MQTT Client
- Data Logging
- • Sniffer, Off-line/Full-time Proxy, Mixed modes

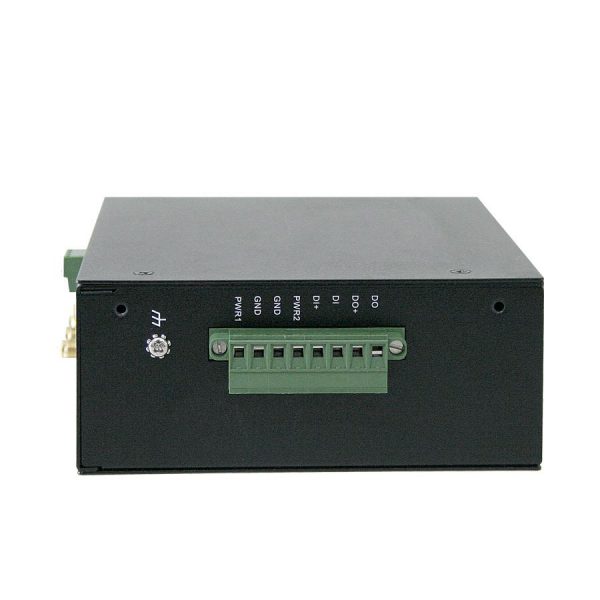

Power
- Input
- • DC 12V-48V (Terminal Block)
- Power Consumption
- • 25W Max.
Mechanical
- Dimension
- • 62 x 135 x 160mm (with DIN-Rail kit)
- Weight
- • 1.2Kg (2.64lb)
- Installation
- • DIN-Rail
Environment
- Operating Temperature
- • -30 to 70°C (-22 to 158°F)
- Storage Temperature
- • -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- • 5% to 95% (non-condensing)
Regulatory Approvals
- Safety
- EN 60950-1
- EN 62368-1: 2014
- Emissions/Immunity
- CE/NCC BSMI/NBTC
