The ED3538 Hardened Ethernet Extender utilizes EtherWAN’s exclusive Power over Link (PoL) technology to deliver both PoE power and Ethernet communications over a single legacy twisted pair cable, such as a telephone line. The ED3538 PoL solution is comprised of one transmitter and one receiver working together to provide reliable communications and power to remote PoE Powered Devices such as IP cameras, wireless access points, emergency intercoms, or VoIP phones.
With just the transmitter connected to power, the ED3538 provides a maximum of 30 watts of power and a bandwidth of 100Mbps to the ED3538 receiver, at distances up to 300 meters. Under this setup, transmission over longer distances can be achieved with lower data and power throughput — up to 1200 meters at a data rate of 20Mbps and 5 watts of power. However, for applications that require even longer distances, the ED3538 can be connected to power at both the transmitter and the receiver unit, increasing the transmission distance to a remarkable 2200 meters, with a data rate of 1Mbps and a full 30 watts. The current data transmission rate and power sourcing equipment output is displayed by LED indicators.
The ED3538 is highly resistant to electromagnetic interference, shock, and vibration, ensuring connection reliability even in harsh environments.
Technology
Standards
- • IEEE 802.3 10BASE-T
- • IEEE 802.3u 100BASE-TX
- • IEEE 802.3x full duplex and flow control
- • IEEE 802.3af/at PoE/PSE
Protocols
- • Transparent to higher layer protocols
Processing Type
- • IEEE 802.3x Full-duplex flow control
- • Auto-Negotiation
- • Auto MDI/MDIX
Power
Input
- • Terminal Block: 46-57VDC
- • DC JACK: 48VDC
- • 2.5A@48VDC (Peak current 3.26A)
Power Consumption
- • Max. 65W with Power over Link™ (PoL) function enabled
- • ED3538T: Max. 5W (without PoL/PoE)
- • ED3538R: Max. 5W (without PoL/PoE), Max. 35W (with PoE only)
Protection
- • Overload current protection
- • Reverse polarity protection
Mechanical
Casing
- • Aluminum case
- • IP30
Dimensions
- • 50 x 110 x 135mm (W x D x H)
(1.97″ x 4.33″ x 5.31″)
Weight
- • 0.8Kg (1.76lbs.)
Installation

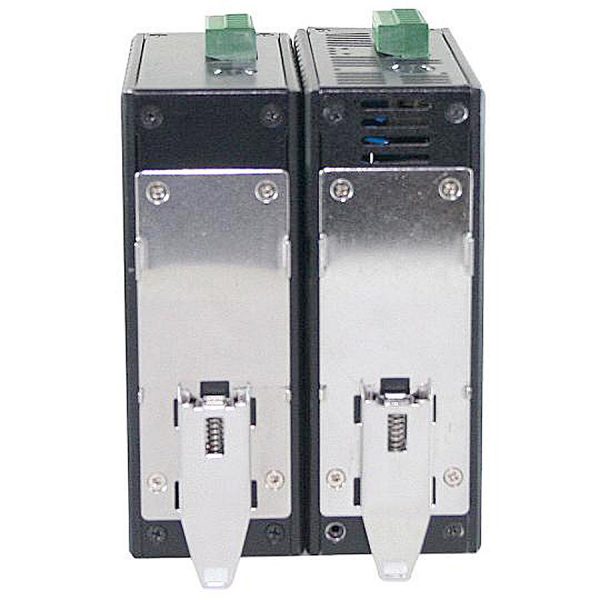

- • DIN-Rail (Top hat type 35mm), Panel or Rack mounting
Interface
Ethernet Port
- • ED3538T/R: 1 x 10/100BASE-TX Full-duplex RJ-45 port
- • ED3538R: 1 x PoE/PSE port
- • Speed: 10/100Mbps
- • Cable: 100BASE-TX, UTP CAT. 5 (4-pair wire)
- • Distance: 100 meters (328ft.)
Ethernet Extender Port
- • 1 x RJ11 port
- • 1 x 2-pin Terminal Block (Wire range: 12-30AWG)
DIP Switch
- • ED3538T: PoL: On/Off, Type: Perf/Std
- • ED3538R: Mode: Loc/Rmt, Type: Perf/Std
LED Indicators
- • Per Unit: Power
- • Per 10/100TX Port: Link/Activity, Full-duplex
- • Line Speed: Six indicators for 100/80/60/40/20Mbps and Link below 20Mbps
- • PoE: Power over Ethernet function availability
► Speed/Distance/PoE Output Reference
* PoL™ Enabled
| Distance | Data Rate | ED3538R PoE Output |
| 300m | 100Mbps | 30.0W |
| 400m | 90Mbps | 15.4W |
| 600m | 60Mbps | 14.0W |
| 800m | 45Mbps | 9.5W |
| 1000m | 35Mbps | 7.0W |
| 1200m | 20Mbps | 5.0W |
* PoL™ Disabled (Power Supply Applies on 3538R)
| Distance | Data Rate | ED3538R PoE Output |
| 1400m | 15Mbps | 30.0W |
| 1600m | 10Mbps | 30.0W |
| 1800m | 3Mbps | 30.0W |
| Up to 2200m | 1Mbps | 30.0W |
Note: Reference performance on 24AWG copper wire (0.5mm diameter, 1-pair wire, Cable impendence: 100ohm)
Environment
Operating Temperature
- • -40 to 75°C (-40 to 167°F)
Tested @ -40 to 85°C (-40 to 185°F)
Storage Temperature
- • -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
- • 5% to 95% (non-condensing)
Regulatory Approvals
ISO
- • Manufactured in an ISO 9001 facility
Safety
- UL 60950-1
- IEC 60950-1
EMI
- FCC Part 15B Class A
- EN 61000-6-4
- EN 55022
- EN 61000-3-2
- EN 61000-3-3
EMS
- EN 61000-6-2
- • EN 61000-4-2 (ESD Standards)
- • EN 61000-4-3 (Radiated RFI Standards)
- • EN 61000-4-4 (Burst Standards)
- • EN 61000-4-5 (Surge Standards)
- • EN 61000-4-6 (Induced RFI Standards)
- • EN 61000-4-8 (Magnetic Field Standards)
Environmental Test Compliance
- IEC 60068-2-6 Fc (Vibration)
- IEC 60068-2-27 Ea (Shock)
- IEC 60068-2-32 Ed (Free fall w/package)
