iNA140

iNA140

DIN-rail Industrial-grade Network Appliance Platform with Intel® Atom® x5-E3930 Processor and 4 LAN

Features

Form Factor	DIN-rail, Wall mount (optional)
CPU	Intel® Atom® x5-E3930 processor (Apollo Lake)
Chipset	SoC integrated
System Memory	1 x DDR3L-1866 SO-DIMM, up to 8GB non-ECC/ECC memory
BIOS	AMI
Ethernet	4 x 10/100/1000 Mbps (Intel® i211)
Storage	1 x half sized mSATA (occupied 1 x PCI Express Mini Card slot) 1 x Internal 2.5″ SATA drive (9.5 mm height)
Expansion	1 x Half-size PCIe Mini Card slot with SATA/USB signal 1 x Full-size PCIe Mini Card slot with USB signal
I/O Interface	1 x RS-232 1 x RS-232/422/485 4 x 1GbE RJ-45 2 x USB 3.0 1 x HDMI 2 x Tact switch (1 x reset button, 1 x GPI button)

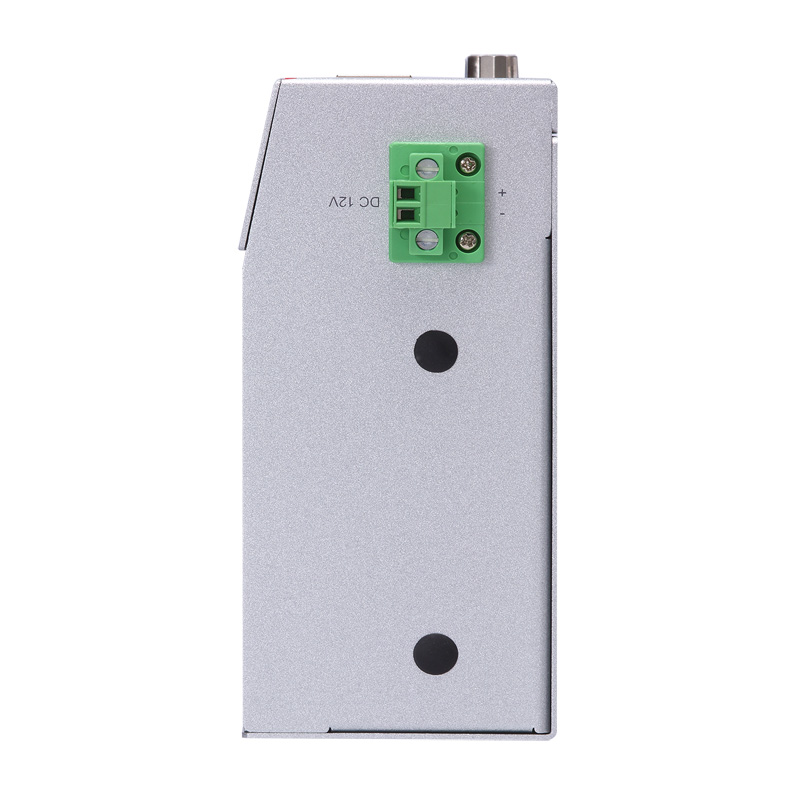

Power Supply	1 x 2-pin terminal block 12V
Others	LAN Bypass (one pair)
Watchdog Timer	255 stepping for system reset
Dimensions (H x W x D)	150 x 120 x 54 mm (5.9″ x 4.72″ x 2.13″)
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Weight (net/gross)	1.1 kg (2.43 lb)/2.0 kg (4.41 lb)
OS	Win 10, Linux (Yocto project)
Certifications	FCC class B/CE class B
