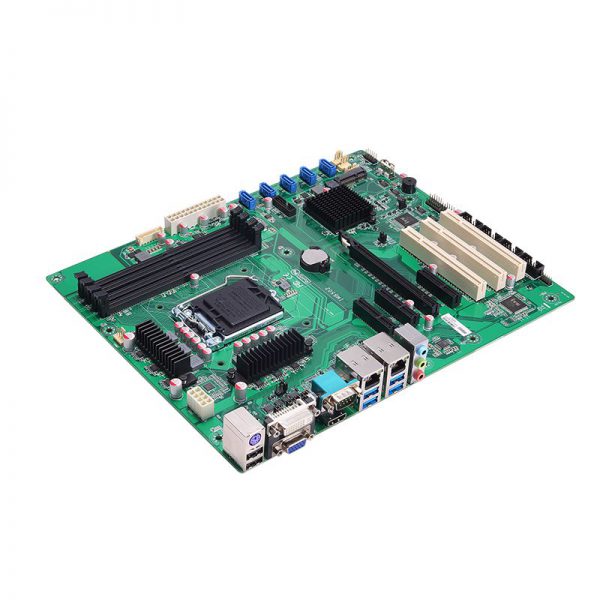

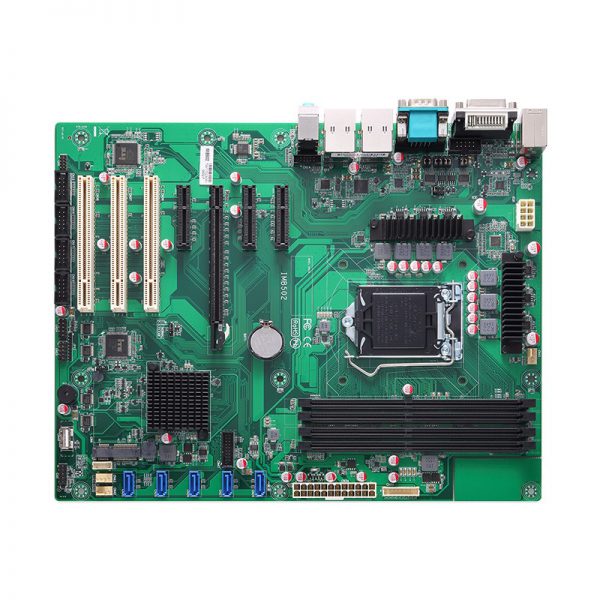

IMB502

IMB502

Features

LGA1151 socket 7th/6th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (Kaby Lake/Skylake)
Four 288-pin DDR4-2400/2133/1866 DIMM for up to 64GB of memory
VGA, DVI-D and HDMI with triple-view supported
5 SATA-600 with RAID 0/1/5/10
6 USB 3.0 and 7 USB 2.0

CPU	LGA1151 socket 6th/7th generation Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor
Chipset	Intel® Q170
System Memory	4 x 288-pin DDR4-2400/2133/1866 DIMM, up to 64GB
BIOS	AMI
COM	5 x RS-232 (Internal box header) 1 x RS-232/422/485
USB	6 x USB 3.0 (4 ports on rear I/O; 2 ports on internal box header) 7 x USB 2.0 (2 ports on rear I/O; 4 ports on internal pin header; 1 port USB Type A connector onboard)
Ethernet	1 x 10/100/1000 Mbps (AMT; Intel® i219-LM) 1 x 10/100/1000 Mbps (Intel® i211-AT)
Display	1 x VGA 1 x DVI-D 1 x HDMI
Digital I/O	8-channel programmable
Audio	MIC-in/Line-in/Line-out
Storage	5 x SATA-600 with RAID 0/1/5/10
Expansion	1 x PCIe x16 slot 3 x PCIe x4 slot 3 x PCI slot
Others	SMBus
Battery	Lithium 3 V/ 220 mAH
Power Requirements	See DVT report
Watchdog Timer	255 levels, 1 to 255 sec.
Hardware Monitoring	Yes
Operating Temperature	0°C to +60°C (+32°F to +140°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Dimensions	305 x 244 mm
Board Thickness	1.6 mm
Certifications	CE
