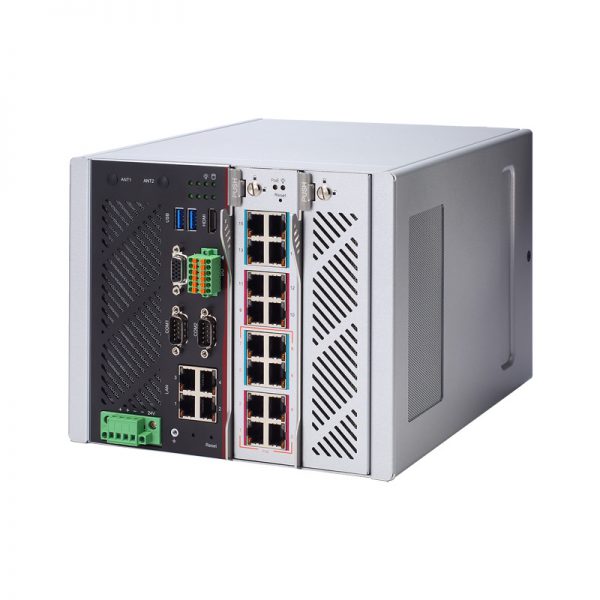

iNA600

iNA600

DIN-rail Industrial-grade Network Appliance with Intel® Xeon® Processor and 16-port L2 Managed Switch

Features

Form Factor	DIN-rail
CPU	LGA1151 Intel® Xeon® processor (Coffee Lake)
Chipset	Intel® C246
System Memory	DDR4-2666 U-DIMM, up to 32GB non-ECC/ECC memory
BIOS	AMI
Ethernet	4 x 10/100/1000 Mbps Ethernet (1-port share with IPMI) 16 x 10/100/1000 Mbps Ethernet (L2 managed switch)
Storage	2 x 2.5″ SATA 3.0 SSD 1 x SATA DOM
Expansion	1 x PCIe Mini Card slot (USB + PCIe interface) 1 x PCIe x8 MXM slot for GPU card (optional) 2 x PCIe x4 M.2 or mPCIe slot for VPU (optional)

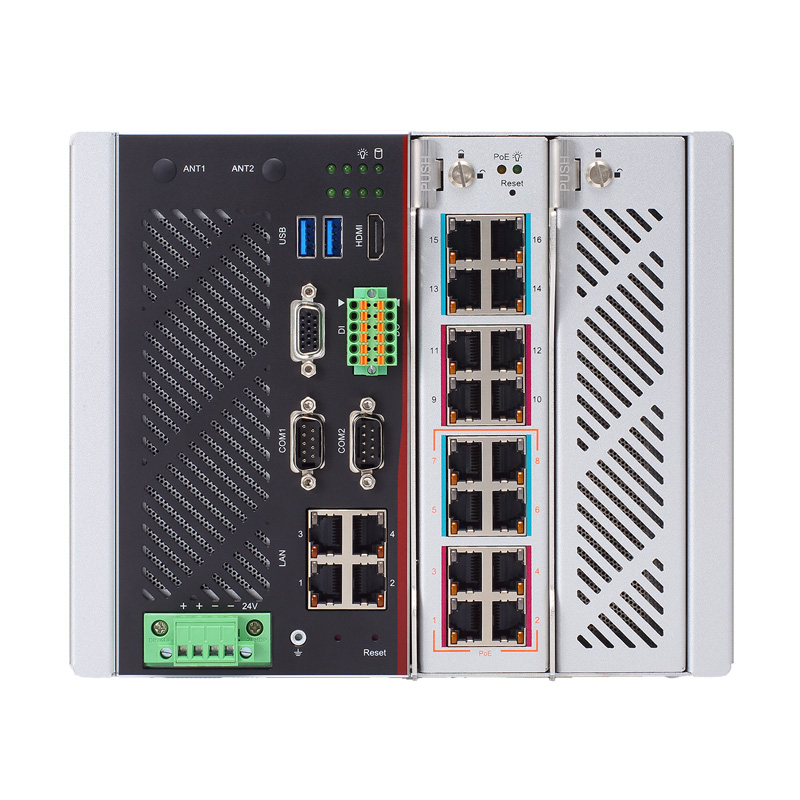

I/O Interface	1 x HDMI 1 x VGA 2 x USB 3.0 1 x RS-232/422/485 & 1 x RS-232 2 x Tack switch 2 x Antenna hole 1 x Power input connector 8 x DIO (4-in/4-out)
Power Supply	1 x 4-pin terminal block 24V
Others	1 x IPMI 2.0 (optional)
Watchdog Timer	255 levels, 1 to 255 sec.
Dimensions (H x W x D)	214 x 265 x 176 mm (8.42″ x 10.43″ x 6.93″)
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Weight (net/gross)	8kg (17.64 lb)/10kg (22.05 lb)
OS	Win 10, Linux
Certifications	CE
