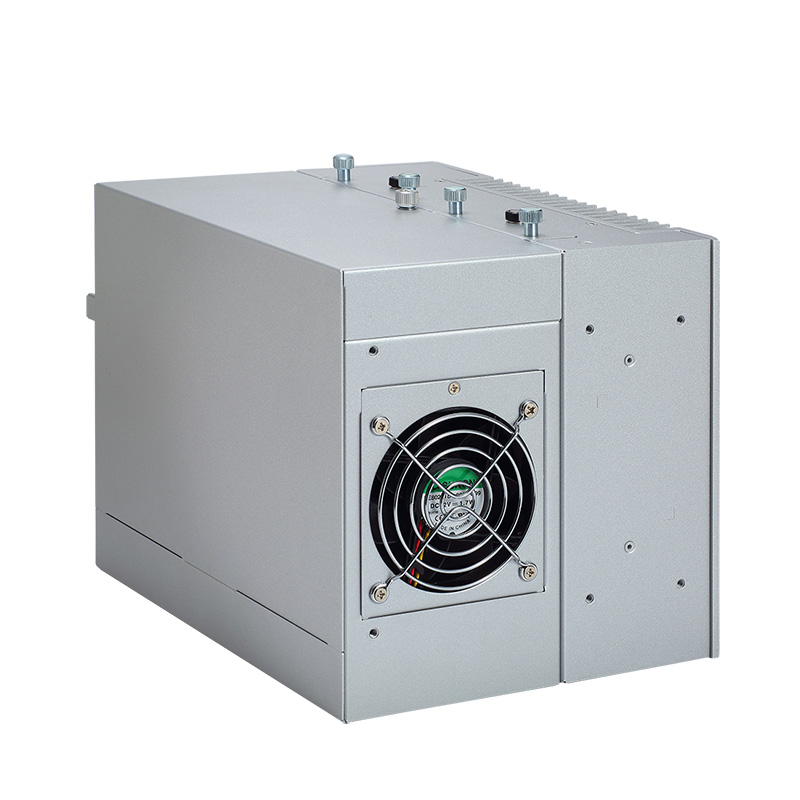

IPS962-512-PoE

Features

• Integrated real-time vision I/O
  – 4 CH trigger input
  – 4 or 8 CH trigger output
  – 4 CH LED lighting control
  – 1 CH quadrature encoder input
  – 16 CH isolated DIO
  – 1 CH auto measurement function
• Supports camera interfaces
  – 4 IEEE802.3at GbE LAN ports (PoE)
  – 4 USB 3.0 ports
• Power input: 24 VDC (uMin=19V/uMax=30V)
• -10°C to +55°C operating temperature range with W.T. SSD
• Supports 2 swappable 2.5″ HDD
• Supports optional WLAN module & antenna
• Supports TPM 2.0 function

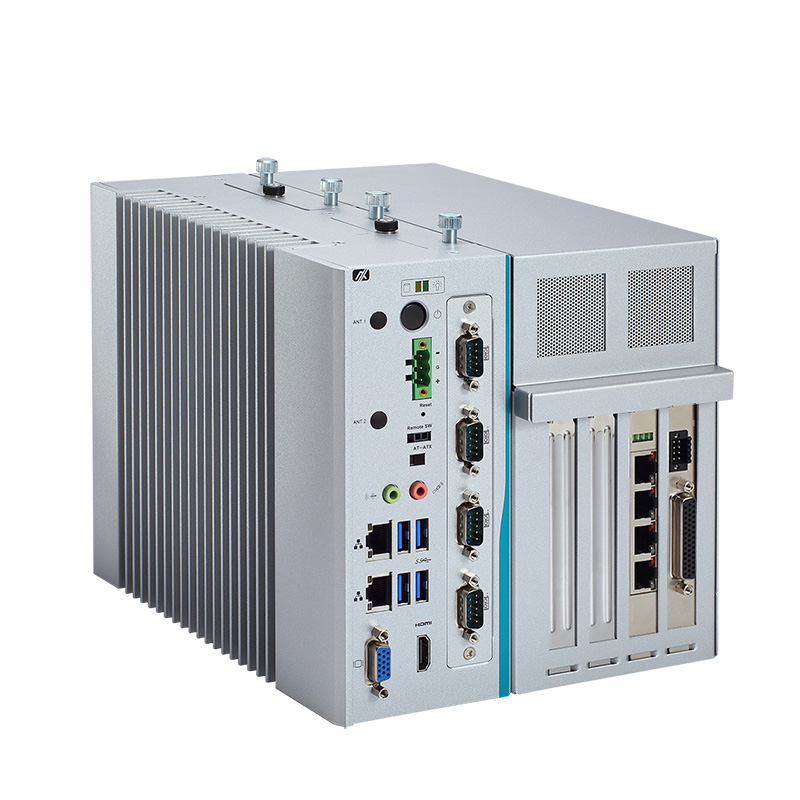

• Compact & front I/O design

Introduction

The IPC962-512-PoE meets the increasing requirements for maximum quality and flexibility in modern production plants. It features flexible expansion capacity, camera communication interfaces, real-time vision-specific I/O with microsecond-scale and LED lighting control. This machine vision controller is powered by the LGA1151 socket 7th/6th generation Intel® Core™ (codename: Kaby Lake/Skylake) and Celeron® processors (up to 65W) with the Intel® Q170 chipset. The IPS962-512-PoE comes with a full range of isolated I/O interfaces and real-time controls essential to machine vision applications, including trigger input, LED lighting controller, camera trigger, as well as an encoder input for conveyor tracking. The real-time vision system PS962-512-PoE enables a fast and high accurate inspection to ensure that the desired quality is achieved with no manufacturing defects. It supports four IEEE802.3at PoE LAN ports and four USB 3.0 ports for connection with industrial cameras. Operating over a wide temperature range from -10°C to +55°C, the IPS962-512-PoE provides reliable and stable performance within severe environments. Its easy setup and compact design are ideal for space constrained environments. Moreover, one PCIe x16 and one PCIe x4 expansion slots allow quick installation of I/O cards and graphics cards. Two easy-swappable 2.5″ HDDs are available for extensive storage needs.
