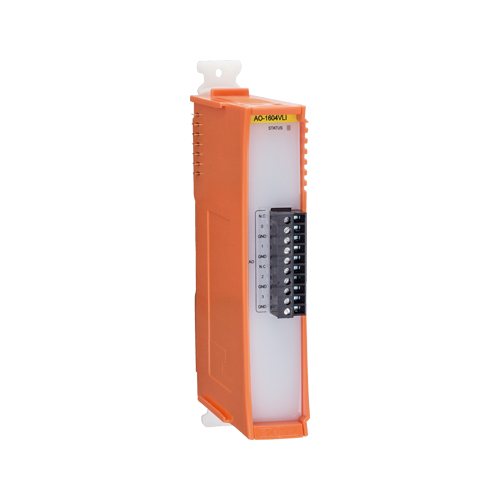

CPS-AO-1604VLI
Analog Output CONPROSYS I/O Module / 4ch(16bit 100ks/s) / Bus Isolation
- Bus-isolated analog output module providing highly accurate measurement
- Compact Design
- Adaptable to a wide range of temperature between -20 and +60°C
- Installation easy with two pieces of terminal support and DIN rail
Overview / Features
This product is an extension module with analog output interface and operates along with the CPU module configurable type controller of our CONPROSYS series. It has 4channels of high precision analog output per module.
-
Bus-isolated analog output module providing highly accurate measurement
- This product contains bus-isolated analog output (16bit, 4ch) that measures with a high degree of accuracy.CPS- AO-1604VLI features the function of the analog voltage output (16bit, 4ch)
-
Compact Design
- Compact design, 25.2 (W) x 94.7(D) x 124.8(H) mm, features flexibility in installation.
-
Adaptable to a wide range of temperature between -20 and +60°C
- The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
-
Installation easy with two pieces of terminal support and DIN rail
- You can remove a terminal connector without a screwdriver so that it
Add-on module
| Bus Specification | CONPROSYS stack bus |
|---|---|
| Size | CONPROSYS 1U |
| Used Connector | 2x 3.81mm-pitch 10-pin 2-piece terminal block |
Analog I/O
| Input Channels | – |
|---|---|
| Input Range | – |
| ADC Resolution | – |
| Sampling Rate | – |
| Buffer Memory | – |
| Output Channels | 4-ch |
| Output Range | ±10V |
| DAC Resolution | 16-bit |
| Update rate | 10μsec (max.) (voltage) |
Digital I/O
| Input Channels | – |
|---|---|
| Output Channels | – |
| Bi-directional I/O Channels | – |
| Response Time (Input) | – |
| Response Time (Output) | – |
| Operating Voltage (Input) | – |
| Operating Voltage (Output) | – |
| Input Circuit | – |
| Output Circuit | – |
| Built-in Power Supply | – |
