Features

• Intel® Celeron® processor J1900 2.0 GHz
• 1 DDR3L-1066/1333 SO-DIMM for up to 8GB of memory
• Fanless operation design with full feature I/O
• 2 RS-232/422/485 and 4 USB 2.0 ports
• One 2.5” 9.5 mm SATA drive bay and mSATA supported
• 2 PCI Express Mini Card slots and 1 SIM slot
• VGA and HDMI with dual-view supported
• -20°C to +55°C wide operating temperature range

Introduction

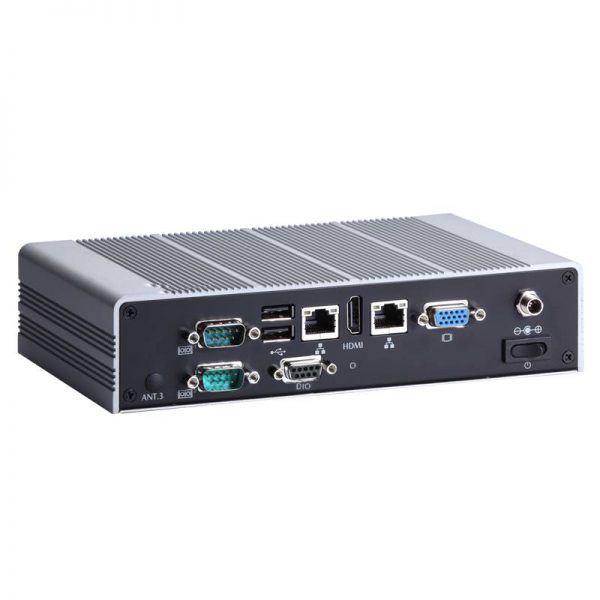

The eBOX625-842-FL industrial-grade, extreme slim, fanless embedded system is powered by quad cores Intel® Celeron™ J1900 2.0GHz SoC (system-on-a-chip). Through the use of Intel® Bay Trail-D type quad-core SoC and one 8 GB DDR3L-1066/1333 SO-DIMM socket, the energy-efficient embedded box computer offers outstanding performance, yet remarkably power efficient experience. Dramatically lighter and rugged enclosure enables the compact system to fit into limited space and withstand any harsh industry environment. The eBOX625-842-FL features dual displays and rich connection capability, including VGA, HDMI, 2 LAN ports, 2 COM ports, 4 USB 2.0 and 8-channel DI/DO, providing an ideal solution for variety applications from digital signage, transportation, kiosk, industrial control automation, medical equipment and IoT & M2M applications.
