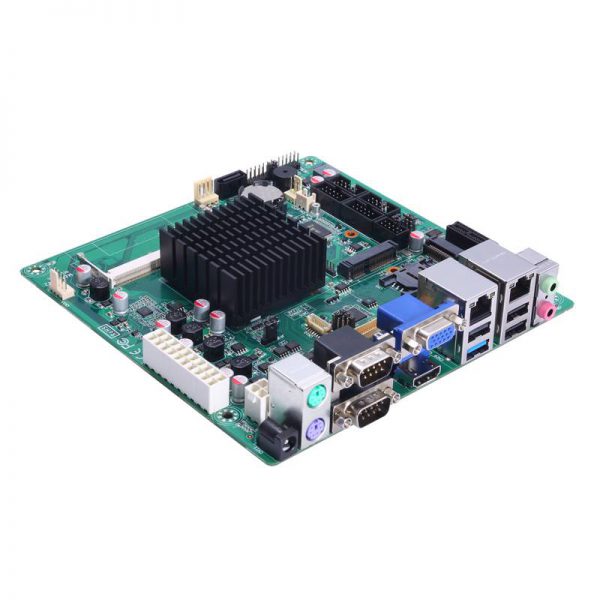

MANO842

Features

• Intel® Celeron® processor J1900 2.0 GHz
• 1 DDR3L-1333 SO-DIMM, up to 8GB
• PCIe x1 supported
• 1 USB 3.0 and 5 USB 2.0 ports
• 1 SATA-300 and 1 mSATA slots
• 6 COM ports
• 12 VDC and ATX
• VGA/HDMI/LVDS with dual-view supported

Introduction

The MANO842 Mini-ITX motherboard features quad-core SoC, fanless design, advanced graphics performance, and 12VDC/STD ATX power input. The powerful MANO842 is equipped with a quad-core Intel® Celeron® J1900 processor with Intel® HD Graphics engine, delivering outstanding computing, graphics and media performance at a competitive price. The cost-effective industrial-grade motherboard utilizes high bandwidth DDR3L-1333 SO-DIMM with system memory up to 8 GB and a rich set of I/O features. With 12V single voltage DC power or STD ATX jack, the ultra-compact Mini-ITX mainboard can be widely applied to automation and embedded industries, including medical healthcare, in-vehicle infotainment, kiosk, digital entertainment, digital signage, POS and much more.
