Features
- Fanless operation with low power consumption
- 2 DDR3L-1600 SO-DIMM for up to 8GB of memory
- 1 HDMI 1.4 and 1 DisplayPort 1.2
- 4 USB, 2 GbE LAN
- Supports 1 M.2 Key E 2230 slot for Wi-Fi/BT
- Supports 1 M.2 Key B 3042 slot for 4G LTE
- 1 M.2 Key M 2280 for storage
Introduction

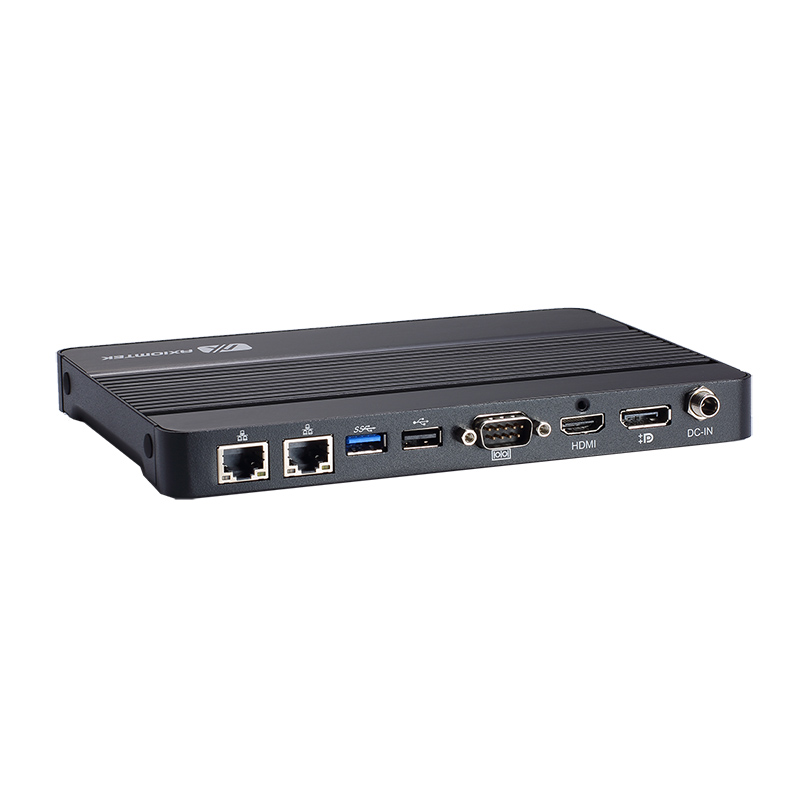

The DSP300-318 is powered by the onboard Intel® Pentium® processor N4200 and Celeron® processor N3350 (code name: Apollo Lake). It can deliver dazzling visual images and video advertising in 4K resolution. Measuring only 20 mm in thickness, the ultra slim DSP300-318 is sleek enough to fit in a small area behind signage displays and its fanless and cable free design enables easy installation without any environment limitation. The super slim DSP300-318 is designed to be fanless and cableless, which ensures solid reliability and easy maintenance. It supports HDMI and Dual-Mode DisplayPort (DP++) outputs with support for dual displays. The system also has one M.2 Key E 2230 for Wi-Fi and Bluetooth modules, one M.2 Key B 3042 for 4G LTE and one SIM card slots for 3.5G radio connectivity. Additionally, one M.2 Key M 2280 and one optional 64GB eMMC 5.0 are available for storage. The Intel® Apollo Lake-based DSP300-318 offers a cost-effective, compact yet powerful computing platform that allows plenty of digital signage solutions for advertising, brand promotion and digital menu board applications.
CPU |
|
Chipset |
|
System Memory |
|
Watchdog Timer |
|
COM |
|
USB |
|
Ethernet |
|
Display |
|
Audio |
|
Storage |
|
Expansion |
|
Others |
|
Wi-Fi |
|
Power Supply |
|
Vibration Endurance |
|
Operating Temperature |
|
Dimensions (W x D x H) |
|
Weight (net/gross) |
|
Mounting |
|
EOS Support |
|
Software Support |
|
Certifications |
|
