UST100-504-FL

Features
Specifications

Features

CE, FCC certified; ISO 7637-2 compliant
LGA1151 7th/6th gen Intel® Core™ & Pentium® processors (up to 35W) with Intel® H110
Fanless and Wide operating temperatures from -40°C to +60°C
12/24 VDC power input, with power management (ACC ignition)
Single-sided I/O design for easy maintenance
Expansion capability for three PCI Express Mini Card slot and two internal SIM card slot

Introduction

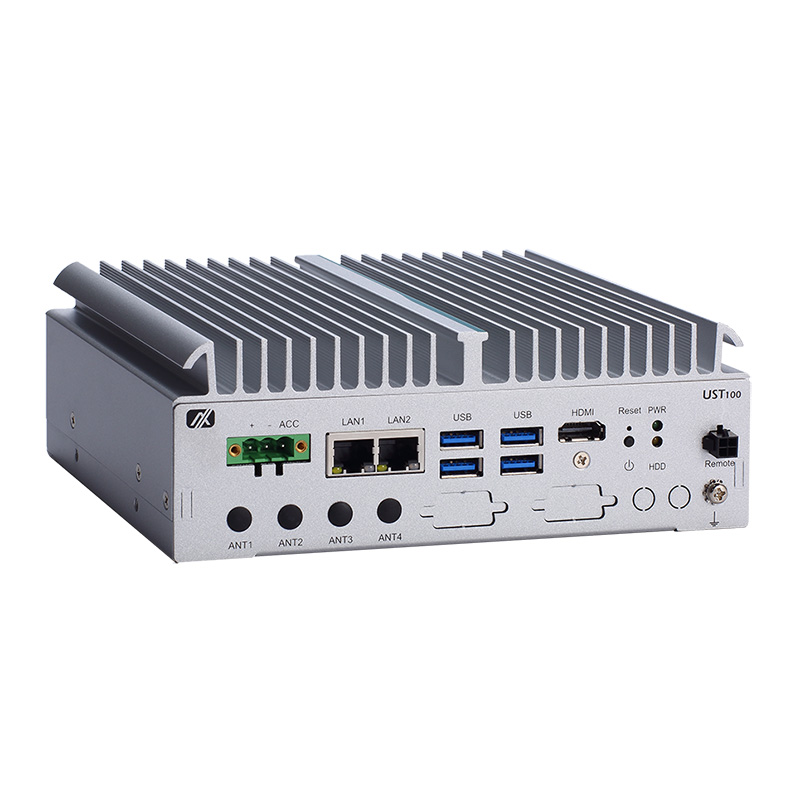

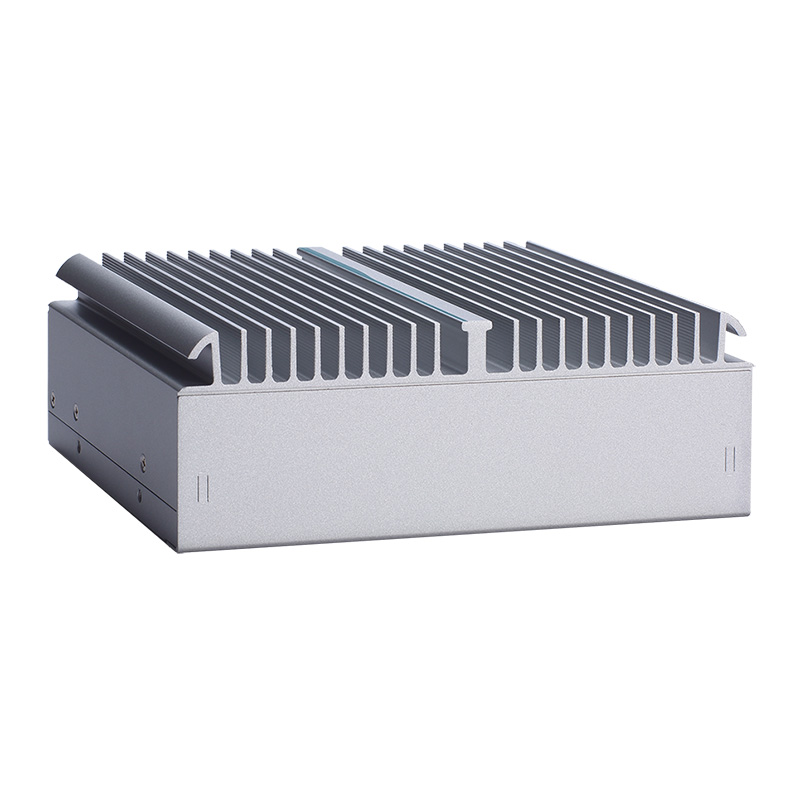

The UST100-504-FL is an extremely compact fanless embedded system for in-vehicle edge computing and video analytics applications. This ruggedized in-vehicle system is certified with CE and FCC and is in compliance with ISO 7637-2. Axiomtek’s UST100-504-FL features a single-sided I/O design for space-limited vehicle applications. The high-performance vehicle PC is powered by the LGA1151 socket 7th/6th generation Intel® Core™ or Pentium® processor with up to 35W TDP and comes with the Intel® H110 chipset. Thanks to its ruggedized structure and outstanding system design, the UST100-504-FL is able to operate under a wide temperature range from -40°C to +60°C and vibration of up to 3 Grms for extreme harsh environment.

CPU	LGA1151 7th gen Intel® Gen Intel® Core™, Pentium® and Celeron® processors, TDP: 35W LGA1151 6th gen Intel® Gen Intel® Core™, Pentium® and Celeron® processors, TDP: 35W
Chipset	Intel® H110
System Memory	1 x DDR4-1866/2133/2400 SO-DIMM, up to 16GB
BIOS	AMI
COM	1 x DB9 Serial console or RS-232/422/485
USB	4 x USB 3.0
PoE	N/A
Ethernet	2 x RJ-45 10/100/1000 Mbps (Intel® i211-IT)
Display	1 x HDMI 1.4b supports up to 4K/2K @60Hz
CANbus	N/A
Digital I/O	1 x DB9 4-in/4-out programmable DIO
Audio	1 x Mic-in, 1 x Line-out
Storage	1 x Internal 2.5” SATA drive (9.5 mm height) 1 x Full-sized mSATA (occupied 1 x PCI Express Mini Card slot) 1 x half-sized mSATA (occupied 1 x PCI Express Mini Card slot)
Expansion	1 x Full-size Rev.1.2 PCI Express Mini Card slot (USB/PCIe with SIM socket) 1 x Full-size Rev.1.2 PCI Express Mini Card slot (mSATA/USB/PCIe with SIM socket) 1 x Half-size Rev.1.2 PCI Express Mini Card slot (mSATA/USB)
Others	1 x Reset button 1 x Power switch 1 x Remote switch 4 x Antenna opening
Power Supply	1 x Terminal block, 12/24 VDC with ACC ignition
Power Consumption	12V, 5.06A; 24V,2.72A
Watchdog Timer	255 levels, 1 to 255 sec.
Construction	Aluminum extrusion and heavy-duty steel, IP30
Operating Temperature	-40°C to +60°C (-40°F to +140°F) with W.T. peripheral
Relative Humidity	0% to 95%, non-condensing
Vibration	3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating) 1 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating) 2 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating) MIL-STD-810G, Method 514.6C-VI Category 4 compliant
Shock	N/A
Dimensions (W x D x H)	185 x 150 x 65.15 mm (7.09” x 5.91” x 2.56”)
Weight (net/gross)	1.71 kg (3.77 lb)/2.19 kg (4.83 lb)
Certifications	CE (Class A), FCC (Class A) certified ISO 7637-2 compliant
EOS Support	Windows® 10 64-bit, Windows® 7 64/32-bit (for 6th gen Intel® CPU), Ubuntu 18.04
Software Support	AMS.AXView

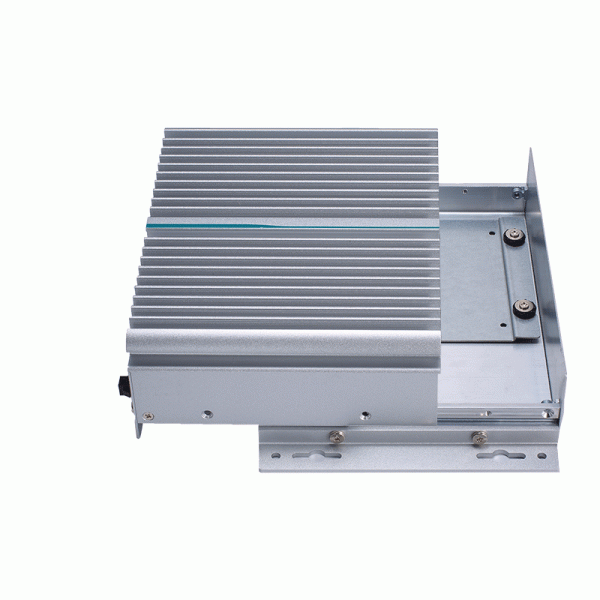

Mounting	Wall mount
