      Industrial Computer / Transportation computer / Transportation Monitor

      P6125

      12.1″ XGA TFT LCD Railway Touchscreen Monitor (-25°C to +55°C)

      Datasheet (PDF)
      หมวดหมู่: Industrial Computer, Transportation computer, Transportation Monitor
      • รายละเอียด
      • Features
      • Specifications

      Features

      • EN 50155 compliant monitor for railway application
      • 12.1″ high brightness XGA TFT touchscreen LCD
      • Wide viewing angle and high brightness 800 nits
      • VGA, DVI-D and HDMI with multiple video inputs
      • Light sensor for auto-dimming
      • 24 to 110 VDC power input
      • -25°C to +55°C wide temperature range
      • Supports 5 OSD keys on the front panel

      Introduction



      The P6125 is a 12.1-inch EN50155-compliant touchscreen monitor designed specifically for railway applications. The rugged 12.1″ XGA display adopts a resistive touchscreen with 800 nits high brightness and energy-efficient LED backlights. The P6125 provides customers with multiple video inputs for VGA, DVI-D and HDMI. Additionaly, the railway touch monitor supports an extended operating temperature range from -25°C to 55°C and has an industrial-grade IP65 and NEMA 4 compliant front bezel which resists water spillage and dust ingress. With its rugged yet user-friendly design, the 12.1-inch raiwaly monitor provides an optimal user experience for railway applications under harsh ambient conditions.





      Front Bezel
      • NEMA 4/12 (IP65)-compliant, metal front bezel
      LCD Panel
      • 12.1″ XGA TFT LCD
      Max Colors
      • 16.2M/262k
      Active Area (mm)
      • 210.4 (H) x 157.8 (V)
      Max. Resolution
      • 1024 x 768 pixels
      Display Mode
      • VGA 640 x 480 (60/72 Hz)
      • SVGA 800 x 600 (60/72 Hz)
      • XGA 1024 x 768 (60/72 Hz)
      Pixel Pitch (mm)
      • 0.0685 (H) x 0.2055 (V)
      Backlight MTBF (hrs)
      • 50,000 hrs
      Viewing Angle (H/V)
      • 176°/176°
      Response Time
      • 25ms
      Contrast Ratio
      • 1000 (TYP.)
      LCD Brightness (cd/m²)
      • 800 nits
      Display Control
      • OSD (on screen display)

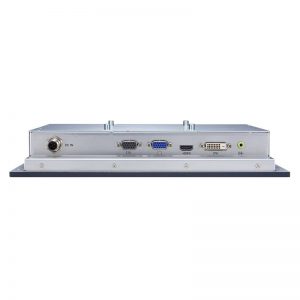

      I/O Interface
      • 1 x RS-232 for touchscreen and remote control
      • 1 x HDMI
      • 1 x DVI-D
      • 1 x M12 DC-in
      • 1 x VGA
      • 1 x Line-in
      Touchscreen
      • Resistive
      Power Adapter
      • 24 VDC to 110 VDC power input
      Power Comsumption
      • 33W
      Operating Temperature
      • -25°C to +55°C (-13°F to +131°F)
      Dimensions (W x D x H)
      • 330 x 57 x 245 mm (12.99″ x 2.24″ x 9.65″)
      Weight (net/gross)
      • 2.2 kg (4.85 lb)/3.45 kg (7.61 lb)
      Mounting
      • Panel mount
      • VESA arm
      Certifications
      • CE, EN 50155, EN 45545 compliance
