IRU152

Features

• RISC-based (i.MX 6UltraLite) processor 528 MHz
• 512MB DDR3 SDRAM onboard
• 8GB eMMC flash onboard
• 2 PCI Express Mini Card slots (Wi-Fi, 3G/4G or LoRa)
• 4 isolated analog input channels (16-bit, 250 kS/s)
• 1 isolated COM port
• 1 isolated DIO (2-in/2-out)
• Embedded Linux operating system (Yocto)
• Wide operating temperature range from -40°C to +70°C
• Supports LabVIEW versions later than 2016
• Supports OPC UA

Introduction

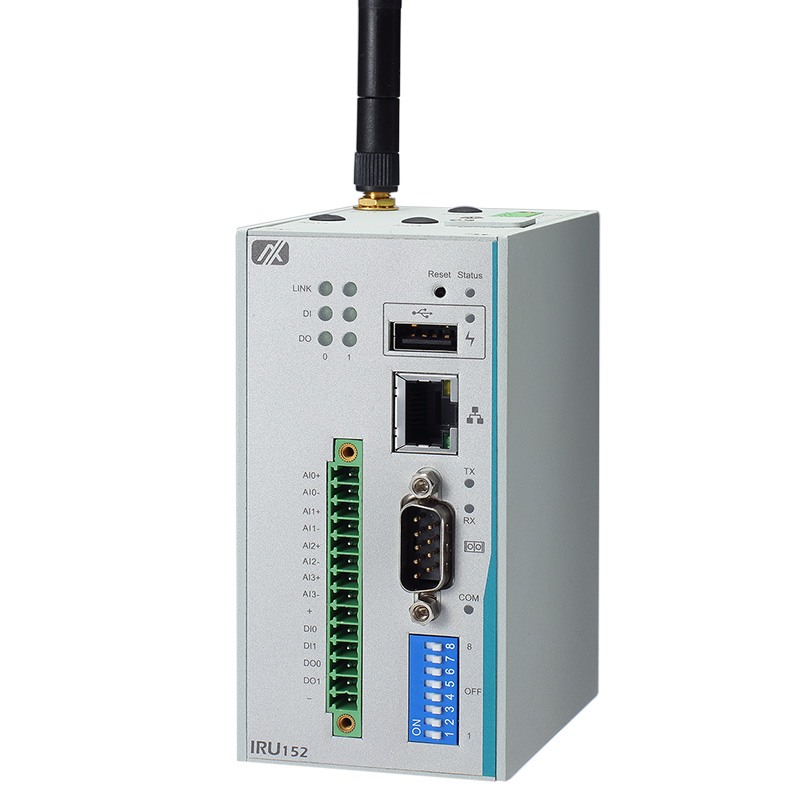

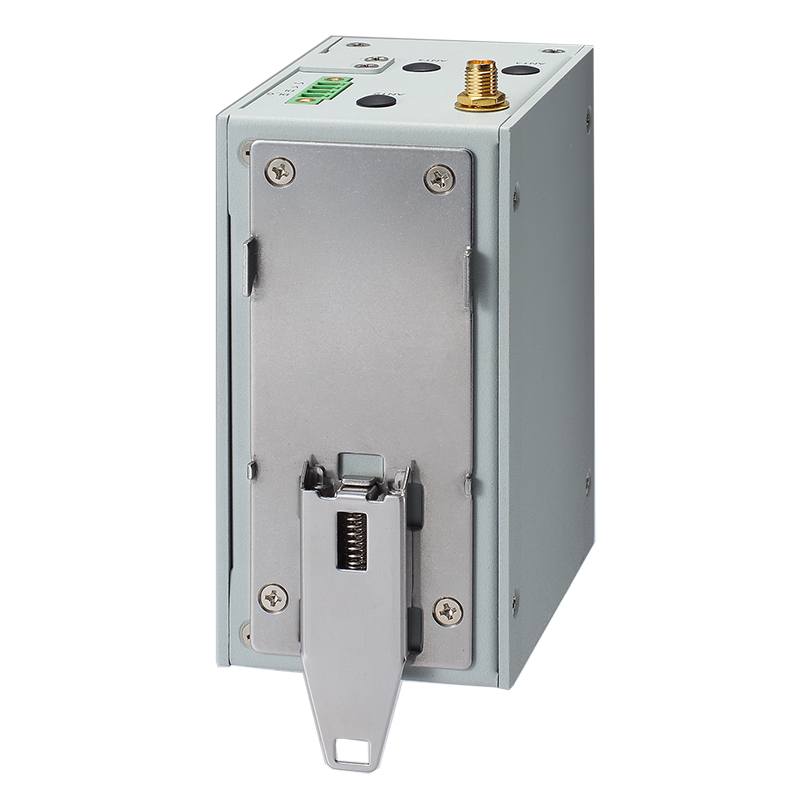

The IRU152 is powered by the low-power NXP i.MX 6 UltraLite processer. It can withstand an extended operating temperature range of -40°C to +70°C and up to 2G of vibration for operating in harsh environments. Furthermore, it supports NI LabVIEW to allow users to design graphical user interfaces for their measurement applications quickly and efficiently. In order to provide data collection and device control, the IRU152 comes with various I/O connectors, including four analog input (AI) channels, one isolated RS-232/422/485 port, one isolated LAN and one isolated DIO (2-in/2-out). The four analog input channels have differential input configuration and overvoltage protection of 55V DC. The maximum sampling rate of IRU152 is up to 250 kS/s with a 16-bit resolution for low-speed high-resolution sensor monitoring and signal measurements. Apart from the abovementioned features, the IRU152 comes in two PCI Express Mini Card slots and one SIM card slot for Wi-Fi, 3G/4G and LoRa connections. The DIN-rail embedded system is equipped with onboard 512MB DDR3 SDRAM; besides, they have an 8GB eMMC flash memory. The extremely low power industrial IoT gateway has passed the Heavy Industrial certification and FCC part 15 to ensure the excellent quality and highly reliable performance.
