IRU151-I

IRU151-I

Features

CPU	NXP i.MX 6UL processor, ARM® Cortex®-A7 @ 528 MHz
Chipset	SoC integrated
System Memory	1 x DDR3-1600 onboard, 512 MB
COM	1 x RS-232/422/485 Magnetic isolation protection 2KV
USB	1 x USB 2.0 (type A)
Ethernet	1 x 10/100 Mbps Magnetic isolation protection 1.5KV
PoE	N/A
CANbus	N/A
Digital I/O	1 x DIO (2-in/2-out) with isolation 2KV
Analog Input	4 x AI (isolation) Channels: 4 (differential) Input impedance: 249Ω Input range: ±20mA Resolution:16-bit Sampling rate : 100 S/s Over voltage protection : ±55V Trigger source : analog or digital (software selectable)
Display	N/A
Wireless	2 x PCI Express Mini Card slot (only USB signal) 1 x SIM card socket
Storage	1 x eMMC 8GB flash onboard

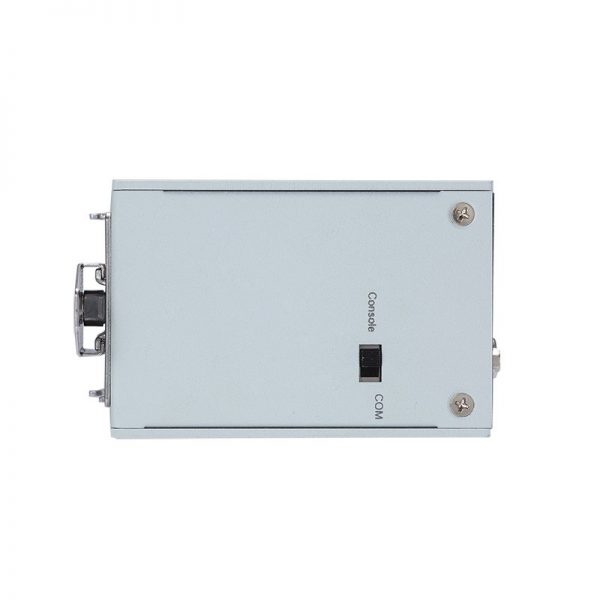

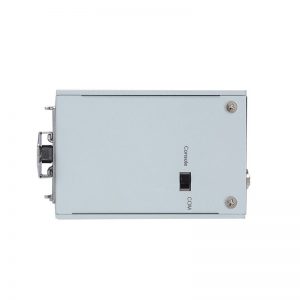

Others	1 x EEPPROM (2 Kb) Console/COM switch Device ID setting 0 ~ 255
Power Supply	9 to 48 VDC
Watchdog Timer	0.5 to 128 sec. with a time resolution of 0.5 sec.
Construction	Extruded aluminum and heavy-duty steel, IP40
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	10% to 95%
Vibration	2 Gms @ (10 to 150Hz sine wave; operation)
Dimensions (W x D x H)	55 x 82 x 108 mm (2.16″ x 3.23″ x 4.25″)
Weight (net/gross)	0.32 kg (0.71 lb)/0.53 kg (1.17 lb)
Certifications	FCC part 15, Heavy Industrial CE
EOS Support	Linux Kernel 3.14.52 Yocto FIDO 1.8
Mounting	DIN-rail
