IRU131-SO

IRU131-SO

Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, COM, LAN, DIO 2-in/2-out (Source Type) and 2 PCIe Mini Card Slots

Features

CPU	NXP i.MX 6 UL processor, ARM® Cortex®-A7 @ 528 MHz
Chipset	SoC integrated
System Memory	512 MB DDR3-1600 onboard
COM	1 x RS-232/422/485 Magnetic isolation protection 2 KV
USB	1 x USB 2.0
Ethernet	1 x 10/100 Mbps Ethernet Magnetic isolation protection 1.5 KV
PoE	N/A
CANbus	N/A
Digital I/O	1 x DIO (2-in/2-out) Optical isolation protection 2 KV Digital Output Type: Source
Analog Input	N/A
Display	N/A
Wireless	2 x PCI Express Mini Card slot (USB signal only) 1 x SIM card socket
Storage	1 x eMMC 8GB flash onboard
Others	1 x EEPPROM (2 Kb) RTC battery on board Device ID (ID setting 0 to 255)
Power Supply	9 to 48 VDC
Watchdog Timer	0.5 to 128 sec. with a time resolution of 0.5 sec.
Construction	Extruded aluminum and heavy-duty steel, IP40
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	10% to 95%
Vibration	2 Gms @ (10 to 150Hz sine wave; operation)
Dimensions (W x D x H)	55 x 82 x 108 mm (2.16″ x 3.23″ x 4.25″)
Weight (net/gross)	0.3 kg (0.66 lb)/0.50 kg (1.10 lb)
Certifications	FCC part 15, Heavy Industrial CE
EOS Support	OS: Yocto 1.8.1 (Fido) Kernel: 3.14.52

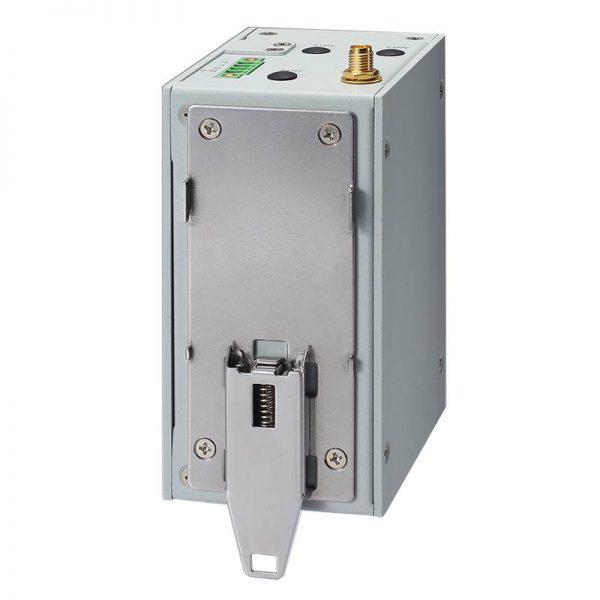

Mounting	DIN-rail
