Features

• 12.1″ TFT flat bezel LCD display
• IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design
• Full stainless steel enclosure with SUS 316
• -20°C to +50°C wide operating temperature range
• Fanless design with Intel® Core™ i5-7300U processor
• Optional Wi-Fi/3G kit for wireless network connectivity
• 9 to 36 VDC wide range power input
• Supports VESA mount

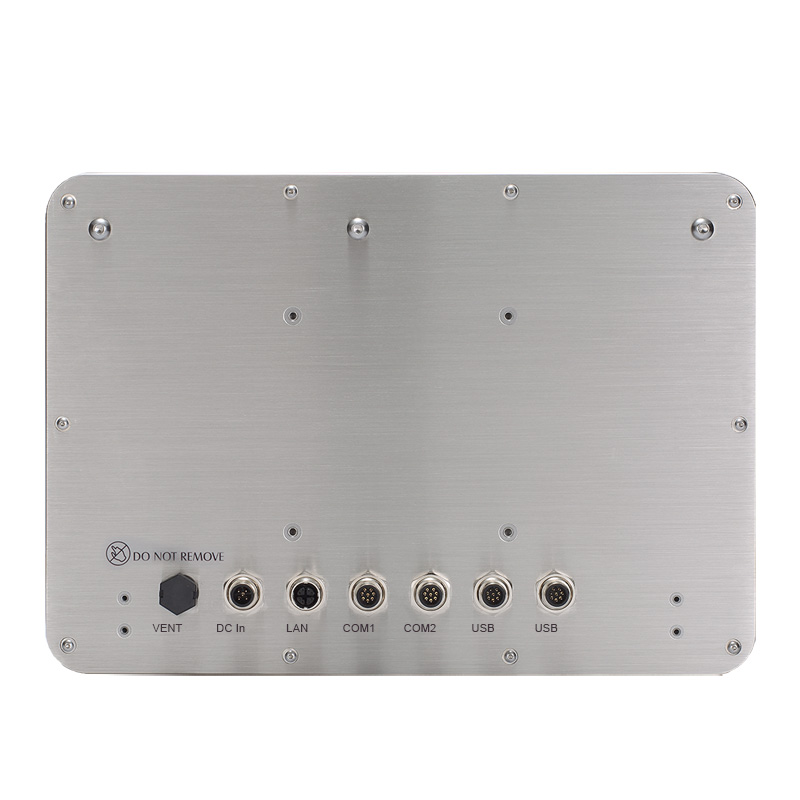

• M12 type connectors for harsh environments

Introduction

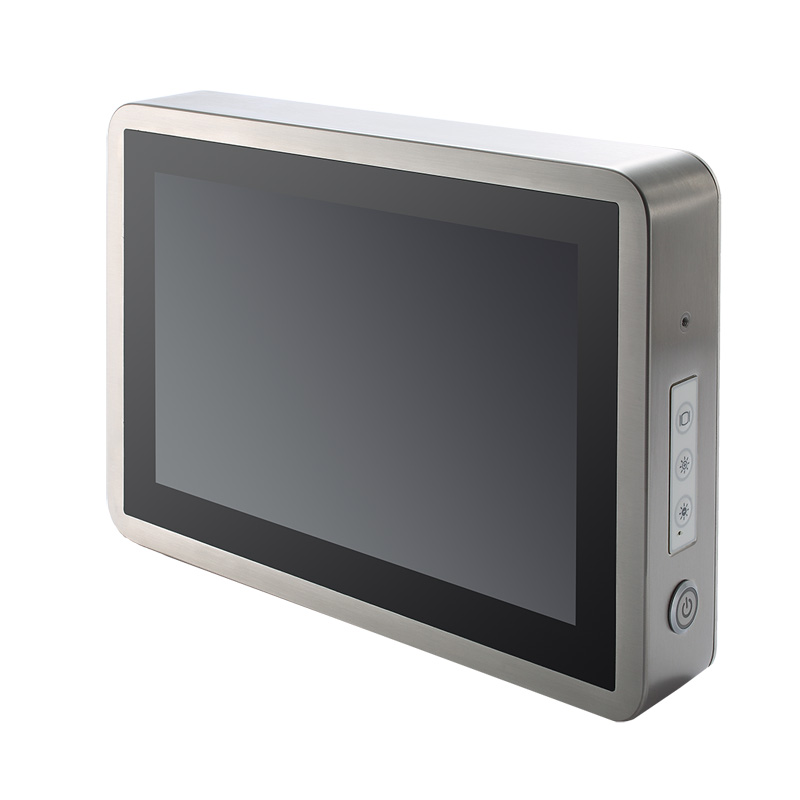

The GOT812W-511 adopts a 12.1-inch WXGA TFT flat bezel LCD display with 1280 x 800 resolutions. It comes with 400 nits of brightness and the choice of a projected capacitive touchscreen or 5-wire flat resistive touchscreen. Besides, the stainless HMI features five IP66-rated M12-type I/O connectors and a wide range power input of 9V to 36V DC for reliable operation. Moreover, it can operate under wide temperature settings ranging from -20°C to +50°C and withstand vibration up to 1G. The high-reliability touch panel PC is completely waterproof with IP69K/IP66 level of protection and adopts full-grade 316 stainless steel enclosures for a higher level of resistance to corrosion. The GOT812W-511 is well suited for use in food and chemical factories, the pharmaceutical industry and heavy-duty outdoor applications
