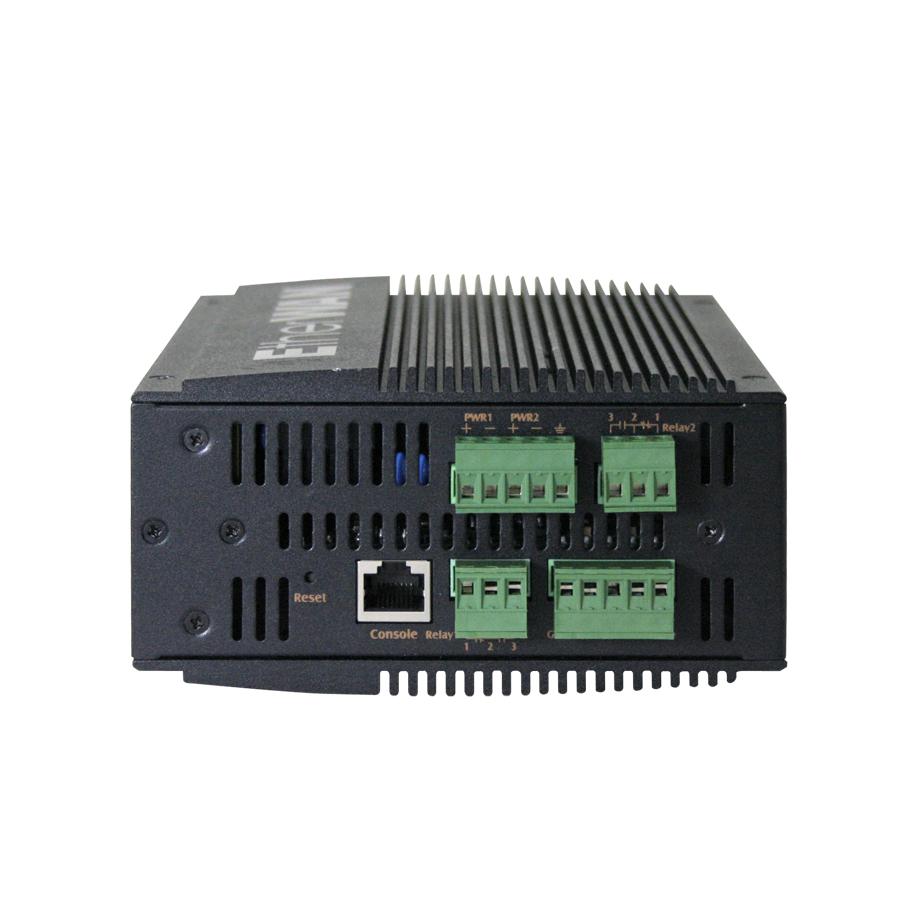

EtherWAN’s EX78900E series is a hardened DIN-rail mounted managed PoE Ethernet switch platform. Equipped with up to 12 gigabit PoE ports along with 60W power and IEEE 802.3.bt protocol support and 4 dual-rate gigabit SFP ports, the EX78900E series provides flexibility, speed, and reliability for networks in urban infrastructure, transportation, security, and other areas where connectivity is crucial.
Interface
- Ethernet
- 8 or 12 x 10/100/1000BASE-T(X)
- 2 or 4 x 100/1000BASE SFP
- Console
- 1 x RJ45
- Config Backup
- 1 x USB (Type A Connector)
- Digital Input
- 2 x Digital Input
- Wet Contact: 0-3V for State 0; 13-30V for State 1; Max Input Current: 8mA
- Dry Contact: Logic Level 1–Close to GND; Logic Level 0-Open
- Alarm Contact
- 2 x Relay output, current capacity 0.5A/48VDC
- LED Indicators
- Per Unit: Power 1, Power 2
- Per Port: Link/Activity (Green)
- Per PoE Port: PoE Status (Orange)
Technology
- Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/100BASE-FX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3ad link aggregation control
- IEEE 802.3z 1000BASE-SX/1000BASE-LX
- IEEE 802.3x full duplex and flow control
- IEEE 802.1D STP
- IEEE 802.1p QoS
- IEEE 802.1Q Tag VLANs
- IEEE 802.1s MSTP
- IEEE 802.1w RSTP
- IEEE 802.1x PNAC
- IEEE 802.1ab LLDP
- IEEE 802.3az EEE
- IEEE 802.3af/at/bt Power over Ethernet*
*IEEE 802.3bt will be available in Q4, 2020
- Forward/Filtering Rate
- 14,800pps for 10Mbps
- 148,810pps for 100Mbps
- 1,488,100pps for 1000Mbps
- Processing Type
- Store-and-forward
- Auto-negotiation
- Half-duplex back-pressure and full-duplex flow control
- Auto MDI/MDIX
- System Memory
- 2Gb DDR3 SDRAM
- Flash Storage
- 1Gb
Power
- Input
- 52-57VDC Redundant (Terminal block)
- Power Consumption
- 20W Max (without PoE)
- PoE Modes
- 802.3af/at Mode A: Pins 1/2(-), 3/6(+)
- 802.3bt (60W): Mode A & B, Pins 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE Power Output
- Ports 1-4, 9-12: Up to 30W/port
- Ports 5-8: Up to 60W/port
- Power Budget: 240W
- Protection
- Reverse Polarity Protection
Physical
- Casing Material
- Aluminum
- IP Rating
- IP30
- Dimensions
- 72 x 140 x 170mm (W x D x H)
2.8″ x 5.5″ x 6.7″
- 72 x 140 x 170mm (W x D x H)
- Weight
- 1.5kg (3.3lbs)
- Installation Type
- DIN-rail mounting
Environmental
- Operating Temp.
- -40 to 75°C (-40 to 167°F)
- Storage Temp.
- -45 to 85°C (-49 to 185°F)
- Relative Humidity
- 5% to 95% (non-condensing)
- MTBF
- 1,108,382 hours
Regulatory
- ISO
- Manufactured in ISO-9001 facility
- EMI
- FCC Part 15B Class A
- VCCI Class A
- EN 61000-6-4
- EN 61000-3-2
- EN 61000-3-3
- EMS
- EN 61000-4-2 (ESD)
- EN 61000-4-3 (Radiated RFI)
- EN 61000-4-4 (Burst)
- EN 61000-4-5 (Surge)
- PoE Ports: line to earth 6kV Surge
- EN 61000-4-6 (Induced RFI)
- EN 61000-4-8 (Magnetic field)
- Safety
- UL 61010
- Vibration
- IEC 60068-2-6
- Shock
- IEC 60068-2-27
- Free Fall
- FED STD 101C Method 5007.1
- Industrial
- EN 50121-4
Warranty
- Length
- Limited Lifetime
- Details
What’s Included
- Device
- Ethernet Switch
- Cables
- 1 Console Cable
- Installation
- Mounting brackets, screws
- Documentation
- Quick Install Guide
