EtherWAN’s EX46900A Series is a compact Hardened Unmanaged PoE Gigabit switching platform, designed for easy deployment in harsh environments.
The EX46900A Series is equipped with ten Gigabit Ethernet ports, with a combination of Gigabit copper ports with 8-port PoE (IEEE802.3at) and two Gigabit fiber ports for long distance connectivity. Although unmanaged, the EX46900A is feature rich with 9.6K Jumbo Frame support, full wire speed Gigabit throughput and eco-friendly IEEE802.3az EEE (Energy Efficient Ethernet) compliance, making the EX46900A Series a powerful yet energy efficient network switch.
Technology
- Standards
- • IEEE 802.3 10BASE-T
- • IEEE 802.3u 100BASE-TX/100BASE-FX
- • IEEE 802.3ab 1000BASE-T
- • IEEE 802.3z 1000BASE-SX/1000BASE-LX
- • IEEE 802.3x Full duplex flow control
- • IEEE 802.1az Energy Efficient Ethernet
- • IEEE 802.3af/at Power over Ethernet (PoE)
- Forward and Filtering Rate
- • 14,880pps for 10Mbps
- • 148,810pps for 100Mbps
- • 1,488,100pps for 1000Mbps
- Packet Buffer Memory
- • 4Mbits
- Processing Type
- • Store-and-Forward
- • Auto Negotiation
- • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
- • Auto MDI/MDIX
- Jumbo Frame
- • 9.6K bytes
- Address Table Size
- • 8K MAC addresses
Power
- Input
- • 18-57VDC
- Power Consumption
- • Device: 11.2W
- • PoE Power Budget: 120W
Port 1 to 4, 10/100/1000 PoE Ports: 60W
Port 5 to 8, 10/100/1000 PoE Ports: 60W
- PoE Technology
- • Alternative A
Pins 1/2(+), 3/6(-)
- Protection
- • Reverse polarity protection
Mechanical
- Casing
- • Metal Case
- • IP30
- Dimensions
- • 66.8 x 125 x 145mm (W x D x H)
(2.63″ x 4.92″ x 5.71″)
- Weight
- • 1.3Kg (2.86lbs)

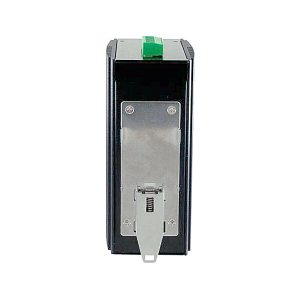

- Installation
- • DIN-Rail, Rack or Panel mounting
Interface
- Ethernet Ports
- • 10/100/1000BASE-T: 8 ports
- • 1000BASE Fiber: 2 ports
- LED Indicators
- • Per Unit: Power 1 (Green), Power 2 (Green), Alarm (Red)
- • Per Port: Link/Activity (Green)
- • Per PoE Port: PoE Status (Amber)
- Alarm Contact
- • One relay output with current 1A/250VAC
- • Supports normal close and normal open
Environment
- Operating Temperature
- • -40 to 75°C (-40 to 167°F)
- Storage Temperature
- • -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- • 5% to 95% (non-condensing)
Regulatory Approvals
- ISO
- • Manufactured in an ISO 9001 facility
- Vehicles
- E-Mark
- Safety
- UL 61010
- EMI
- FCC Part 15B Class A
- VCCI Class A
- EN 61000-6-4
- EN 61000-3-2
- EN 61000-3-3
- EMS
- EN 61000-6-2
- • EN 61000-4-2 (ESD Standards)
- • EN 61000-4-3 (Radiated FRI Standards)
- • EN 61000-4-4 (Burst Standards)
- • EN 61000-4-5 (Surge Standards)
- • EN 61000-4-6 (Induced RFI Standards)
- • EN 61000-4-8 (Magnetic Field Standards)
- Environmental Test Compliance
- IEC 60068-2-6 Fc (Vibration)
- IEC 60068-2-27 Ea (Shock)
- FED STD 101C Method 5007.1 (Free fall w/package)
