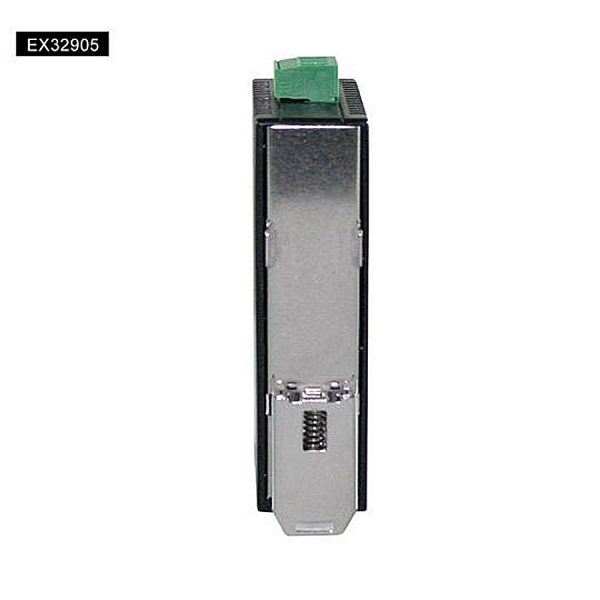

EX32900 Series

Technology

Standards

• • IEEE802.3 10BASE-T
• • IEEE802.3u 100BASE-TX/100BASE-FX
• • IEEE802.3ab 1000BASE-T
• • IEEE802.3z 1000BASE-SX/1000BASE-LX
• • IEEE802.3x Full duplex flow control
• • IEEE802.3az Energy Efficient Ethernet
• • IEEE802.1p Quality of Service (QoS)

Forward and Filtering Rate

• • 14,880pps for 10Mbps
• • 148,810pps for 100Mbps
• • 1,488,100pps for 1000Mbps

Packet Buffer Memory

• • EX31905/EX32914: 1M bits
• • EX32908/EX32917: 192KB

Processing Type

• • Store-and-Forward
• • Auto Negotiation
• • Half-duplex back-pressure and IEEE802.3x full-duplex flow control
• • Auto MDI/MDIX

Jumbo Frame

• • EX32905/EX32914: 10K bytes
• • EX32908/EX32917: 9720 bytes

Address Table Size

• • EX32905/EX32914: 8K MAC addresses
• • EX32908/EX32917: 4K MAC addresses

Broadcast Storm Protection Threshold (EX32908/EX32917 only)

• • Limit 15000 fps@64 frame size, 600 fps@1518 frame size.

Power

Input Voltage

• • 12 to 48VDC

Power Consumption

• • 6.5W Max. 0.25A@24VDC

Protection

• • Reverse polarity protection

Mechanical

Casing

• • Plastic case
• • IP30

Dimensions

• • • EX32905/EX32914:
    • 26 x 76.5 x 114mm (W x D x H)
      (1.02″ x 3.06″ x 4.33″)

• • EX32908/EX32917:
  •   35 x 86 x 149mm (W x D x H)
    (1.4″ x 3.44″ x 5.96″)

Weight

• • EX32905/EX32914: 0.2Kg (0.44lb.)
• • EX32908/EX32917: 0.3Kg (0.66lb.)

Installation

• • DIN-Rail (Top hat type 35mm)

Interface

Ethernet Ports

• • EX32905/EX32914:
  •   10/100/1000BASE-T: 5 or 4 ports
  •   1000BASE-X: 0 or 1 ports
• • EX32908/EX32917:
  •   10/100/1000BASE-T: 8 or 7 ports
  •   1000BASE-X: 0 or 1 ports

LED Indicators

• • EX32905/EX32914:
  •   Per Unit: Power (Green)
  •   Per Port: 10/100M(Green), 1000M (Yellow)
• • EX32908/EX32917:
  •   Per Unit: Power 1 (Green), Power 2 (Green), Alarm (Red)
  •   Per Port: 10/100M(Green), 1000M (Yellow)

Alarm Contact (EX32908/EX32917 only)

• • One relay output with current 1A@250VAC
• • Supports normal close and normal open

DIP Switches (EX32908/EX32917 only)

• • Enable/Disable Port fault alarm

Environment

Operating Temperature

• • -10 to 60°C (14 to 140°F)
  Tested @ -20 to 70°C (-4 to 158°F)

Storage Temperature

• • -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

• • 5% to 95% (non-condensing)

Regulatory Approvals

ISO

• • Manufactured in an ISO 9001 facility

Safety

• UL 60950 (EX32905/EX32914 Series only)

EMI

• FCC Part 15B, Class A
• VCCI Class A
• EN 61000-6-4
• EN 55022 Class A

EMS

• EN 61000-6-2
  • • EN 61000-4-2 (ESD Standards)
  • • EN 61000-4-3 (Radiated RFI Standards)
  • • EN 61000-4-4 (Burst Standards)
  • • EN 61000-4-5 (Surge Standards)
  • • EN 61000-4-6 (Induced RFI Standards)
  • • EN 61000-4-8 (Magnetic Field Standards)

Environmental Test Compliances

• IEC 60068-2-6 Fc (Vibration)
• IEC 60068-2-27 Ea (Shock)
• FED STD 101C Method 5007.1 (Free fall w/ package)
