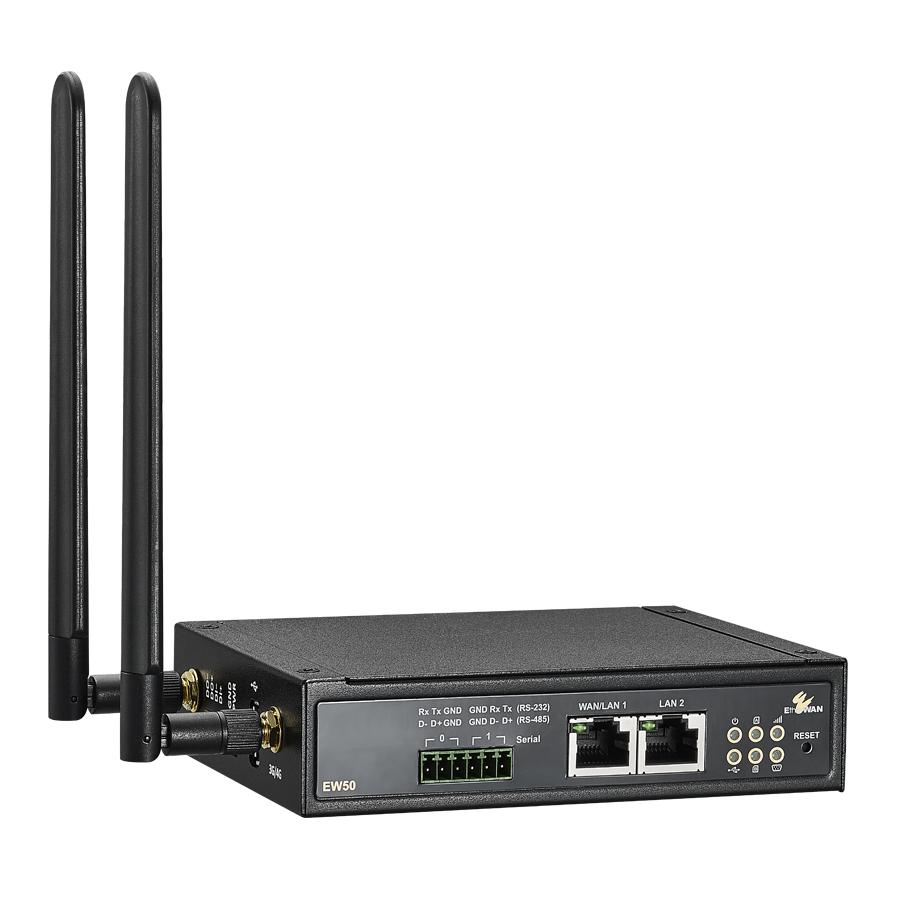

The EW50 is an intelligent industrial grade gateway designed for critical infrastructure and industrial applications. It provides reliable and secure remote connectivity designed for harsh environments, giving operations and IT real-time awareness with remote monitoring.
Moreover, it delivers best-in-class multi-path connectivity with Wireless, Ethernet, serial, and digital I/O to satisfy most applications. Global LTE options make it easy to get connected.
Cellular Interface
- Standards
- • Cellular Frequency Bands: (Please check Frequency Bands Region Codes)
- • LTE Cat. 4: FDD-LTE, TDD-LTE, Transfer rate (max):
LTE FDD: 150Mbps down; 50Mbps up
LTE TDD: 130Mbps down; 35Mbps up - • 3G: WCDMA, Transfer rate (max): 42Mbps down; 5.76Mbps up
- • 2G: GSM/EDGE, Edge Transfer rate (max): 236.8Kbps down & up
- Antenna connector
- • 2 x SMA Female
- SIM Slot
- • 2
Ethernet
- Standards
- • IEEE 802.3 10BASE-T
- • IEEE 802.3u 100BASE-TX/100BASE-FX
- • IEEE 802.3ab 1000BASE-T
- Ports
- • 2 x RJ45 GE
- Physical Layer
- • 10/100/1000BASE-T
Serial
- Ports
- • 2 x RS-232/RS-485
I/O
- DI/DO
- • 1 x Digital In (“Logic 0”: 0-2V, “Logic 1”: 5V-30V)
1 x Digital Out (Relay Mode, up to 30V/1A)
USB
- Standards
- • USB 2.0
- Ports
- • 1 x USB Type A
Micro SD
- Capacity
- • Max. Storage of 64GB
Functions
- VLAN
- • Port-based, Tag-based VLAN
- Port Forwarding
- • Virtual Server/Computer (1-1), DMZ Host, PPTP/L2TP/IPSec Pass-through
- Routing
- • Static, Dynamic: RIP1/RIP2, OSPF, BGP
- VPN
- • IPSec, OpenVPN, PPTP, L2TP, GRE
- Firewall
- • SPI Firewall with Stealth Mode, IPS
- Event Engine/Event Handling
- • Managing/Notifying Events: DI, DO, Modbus, SMS, Syslog, SNMP Trap, Email Alert, Reboot
- Device Management Solution
- • eVue (Q1, 2019)
- • EW Remote Manager (Q4, 2020)
Cloud Development Platform
- • Support Microsoft AZURE
Field Communication
- Virtual COM
- • RFC2217, TCP Client, TCP Server, UDP
- Modbus
- • Gateway for Modbus TCP, Modbus RTU/ASCII Master/Slave Access
- • Slave for Device Status/Information Access
- Data Logging
- • Sniffer, Off-line/Full-time Proxy, Mixed modes
Power
- Input
- • DC 9V-36V
- Power consumption
- • 5.0W Max.
Mechanical
- Dimension
- • 31 x 99 x 130.6mm (w/o mounting brackets)
- Weight
- • 0.9Kg (1.98lb)
- Installation
- • DIN-Rail
Environment
- Operating Temperature
- • -30 to 70°C (-22 to 158°F)
- Storage Temperature
- • -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- • 5% to 95% (non-condensing)
Regulatory Approvals
- Safety
- EN 60950-1
- EN 62368-1: 2014
- Emissions/Immunity
- EW50-TA FCC/NCC/RCM
- EW50-EUS FCC/CE/NBTC/NTC
- EW50-JP VCCI/JATE
