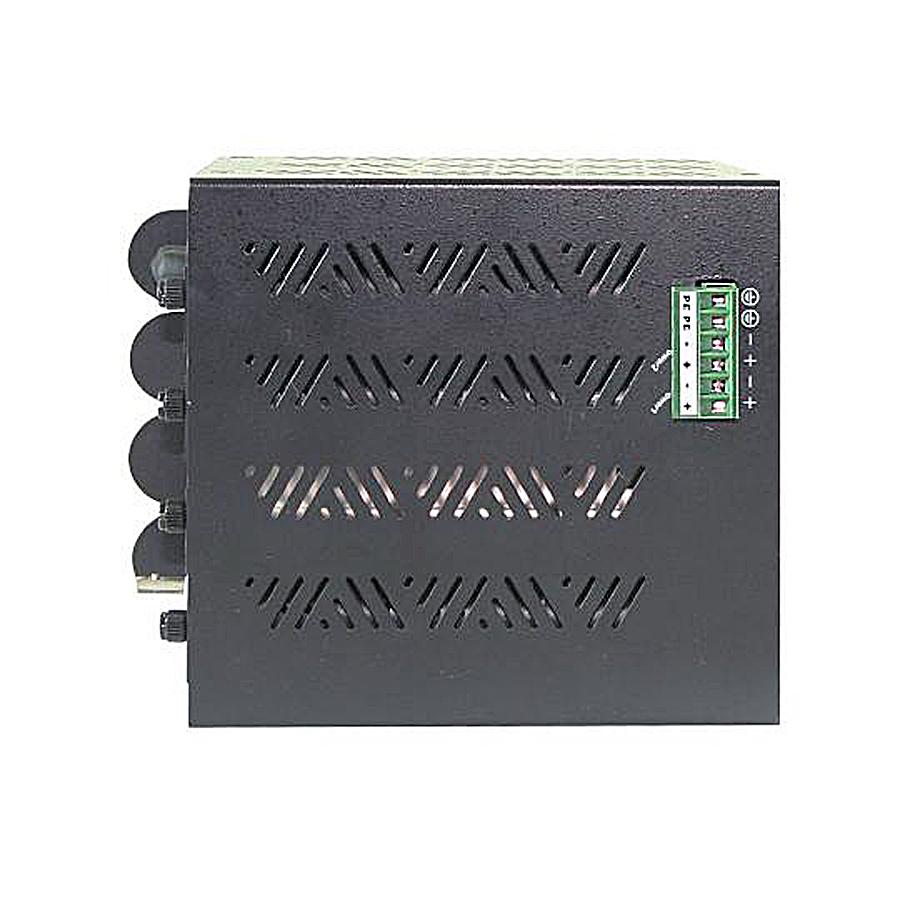

The EMC400, 4-slot Din-Rail mount chassis brings Flexibility, Reliability and Redundancy to mission critical network infrastructures. Its flexible design allows for a variety of EtherWAN Media Converters and Ethernet Extenders to be combined into one chassis giving users a solution that fits the needs of each individual network installation. Designed with dual power inputs, the EMC400 allows for two separate power sources to increase reliability and dependability eliminating the single point of failure of a single power source.
With its hot swappable design, the EMC400 allows existing communications to remain uninterrupted during the simple installation of EtherWAN Media Converters and Ethernet Extenders. In addition, the EMC400 incorporates Electrical Isolation with fused overcurrent protection between devices within its chassis. With its solid metal enclosure, DIN-Rail mount design, and hot swappable technol
Power
Input
- • Power supply input: 90-264VAC
- • EMC400 chassis input: 12VDC
Wiring
- • Minimum cable AWG: 16AWG
Power Consumption
- • Max. 19W@Full installation, depending on installed devices
Protection
- • Over current protection
Mechanical
Casing
- • Steel Electrogalvanized ColdRolled Coil (SECC)
Dimensions
- • 130 x 164 x 92.1mm (W x D x H)
(5.12″ x 6.46″ x 3.63″)
Weight
- • 1.37kg (3.02lb)
Installation
- • DIN-Rail
Interface
LED Indicators
- • Power 1: On, power input 1 is connected
Off, power input 1 is disconnected - • Power 2: On, power input 2 is connected
Off, power input 2 is disconnected
Environment
Operating Temperature
- • -20 to 60°C (-4 to 140°F)
Storage Temperature
- • -20 to 70°C (-4 to 158°F)
Ambient Relative Humidity
- • 5% to 95% (non-condensing)
Regulatory Approvals
ISO
- • Manufactured in an ISO 9001 facility
Safety
- UL 60950-1
EMI
- FCC Part 15B, Class A
- EN 61000-6-4
- • EN 55022
EMS
- EN 61000-6-2
- EN 61000-4-2 (ESD Standards)
- EN 61000-4-3 (Radiated RFI Standards)
- EN 61000-4-4 (Burst Standards)
- EN 61000-4-5 (Surge Standards)
- EN 61000-4-6 (Induced RFI Standards)
- EN 61000-4-8 (Magnetic Field Standards)
Environmental Test Compliance
- IEC 60068-2-6 Fc (Vibration)
- IEC 60068-2-27 Ea (Shock)
- IEC 60068-2-32 Ed (Free fall)
