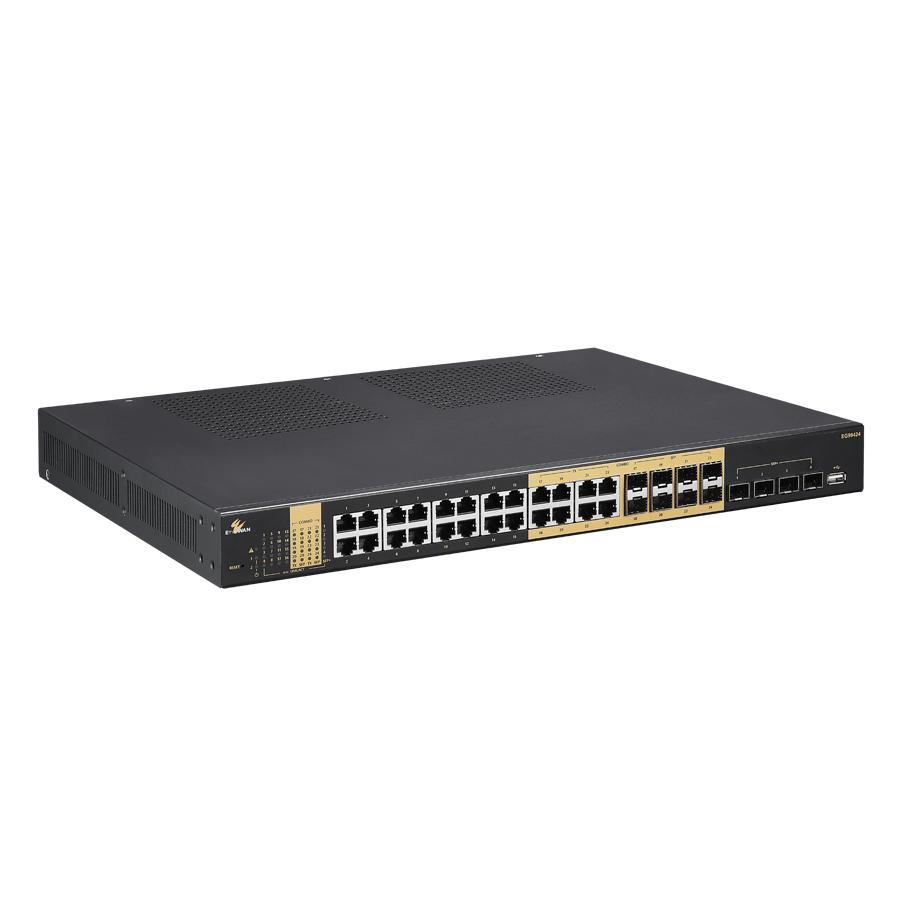

EG99000 Series
Hardened Managed 24-port 10/100/1000BASE-T (8-port combo SFP) and 4-port 10G SFP+ Layer 3 Ethernet Switch
EtherWAN’s EG99000 is a gigabit Layer 3 switch designed for high bandwidth uplink or interconnection. In addition to full wire-speed Layer 2 switching capability and support for a robust set of Layer 2 features, it is capable of Layer 3 IP routing and switching across VLANs and subnetworks with no compromise in performance. The EG99000 supports comprehensive internetwork IP routings that can operate simultaneously with redistributions to each other and route control tools, including IP prefix-list and route-map.
With its hardened specifications, the EG99000 provides high reliability and nonstop operation in harsh environments, and can operate stably in temperatures from -40 to 75°C (-40 to 167°F), as well as in areas with high electromagnetic interference (EMI). The EG99000 is also equipped with sophisticated network and system failure recovery features including VRRP and dual redundant power supplies. This makes it an ideal choice for both industrial and mission critical applications where sustained connectivity is crucial.
Technology
Standards
- • IEEE 802.3 10BASE-T
- • IEEE 802.3u 100BASE-TX/100BASE-FX
- • IEEE 802.3ab 1000BASE-T
- • IEEE 802.3z 1000BASE-SX/1000BASE-LX
- • IEEE 802.3x Full duplex and flow control
- • IEEE 802.1p QoS
- • IEEE 802.1Q Tag VLANs
- • IEEE 802.1w RSTP
- • IEEE 802.1x Port-based Network Access Control
Forward and Filtering Rate
- • 14,880pps for 10Mbps
- • 148,810pps for 100Mbps
- • 1,488,100pps for 1000Mbps
- • 14,880,952pps for 10Gbps
Packet Buffer Memory
- • 32M bits
Processing Type
- • Store-and-Forward
- • Auto-Negotiation
- • IEEE 802.3x full-duplex flow control
- • Auto MDI/MDIX
Address Table Size
- • 24K
Power
Input
- • ±48VDC Redundant (Terminal Block)
- • 100-240VAC Redundant (Terminal Block)
- • 100-240VAC Redundant (AC Inlet)
Power Consumption
- • 75W Max.
Mechanical
Casing
- • Metal Case
- • IP30
Dimensions
- • Redundant Power:
442 x 375.5 x 44.2mm (W x D x H)
(17.4″ x 14.8″ x 1.74″)
Weight
- • 5.6kg (12.3lbs)
Installation
- • Rack mounting
Interface
Ethernet Port
- • 10/100/1000BASE-T: 24 or 16 ports
- • 1000BASE-SFP: 8 ports
- • 10G SFP+: 4 ports
Console Port
- • One DB-9 RS-232 port
- • One RJ45 managed port
USB port
- • One USB port (Type A connector)
Alarm Contact
- • One relay output with current 0.6A/30VDC
Digital Inputs
- • Two Digital inputs
- • +13 to +30V for state “1”
- • 0 to +3V for state “0”
- • Max. Input Current: 8 mA
LED Indicators
- • Per Unit: Power1, Power2, Alarm
- • Per Port: Link/Act (Green)
Environment
Operating Temperature
- • -40 to 75°C (-40 to 167°F)
Storage Temperature
- • -45 to 85°C (-49 to 185°F)
Ambient Relative Humidity
- • 5% to 95% (non-condensing)
Regulatory Approvals
ISO
- • Manufactured in an ISO 9001 facility
EMI
- FCC Part 15B Class A
- VCCI Class A
- EN 61000-6-4
EMS
- EN 61000-6-2
- • EN 61000-4-2 (ESD Standards)
- • EN 61000-4-3 (Radiated RFI Standards)
- • EN 61000-4-4 (Burst Standards)
- • EN 61000-4-5 (Surge Standards)
- • EN 61000-4-6 (Induced RFI Standards)
- • EN 61000-4-8 (Magnetic Field Standards)
Environmental Test Compliance
- IEC 60068-2-6 Fc (Vibration Resistance)
- IEC 60068-2-27 Ea (Shock)
- FED STD 101C Method 5007.1 (Free fall w/package)
