EDGE series products are Internet of Things devices which speed up IoT project deployment on field sites in an easy and scalable way. There are two major wireless LPWA solutions: LoRaWAN™ and LTE NB-IoT/Cat-M1 are deployed on the Edge nodes products respectively, fulfilling wireless monitoring and controlling needs under an IoT framework.

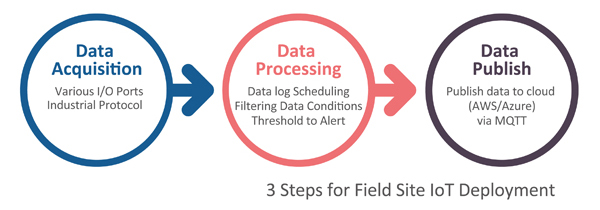

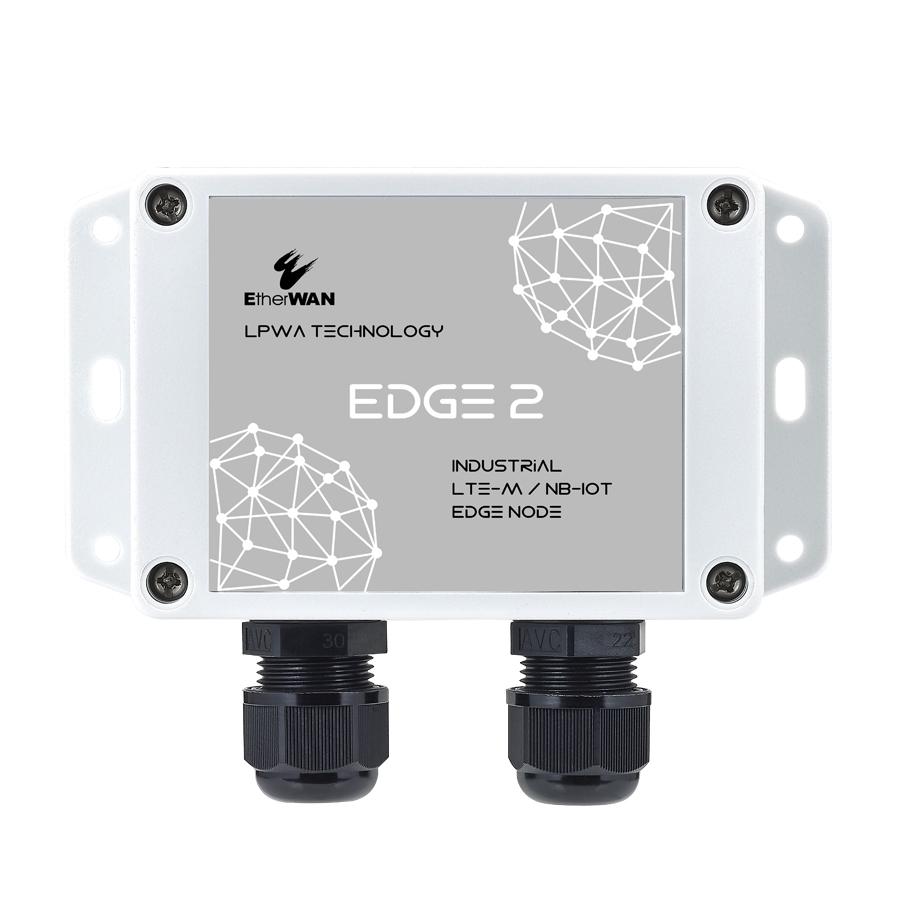

The EDGE 1 deploys LoRaWAN™ wireless technology to provide field asset connectivity to AiR PACE Smart LoRa IoT Edge Computing Gateway with 4G LTE Backhaul & Network Server in low data rates over long distances. The EDGE 2 conveniently and transparently connects the existing field site sensors/serial devices with only basic configuration to NB-IoT/Cat-M1 Internet network.
EtherWAN — “When Connectivity is Crucial.”
Wireless Interfaces
- EDGE 1
- • 1 x LoRa Module
- Frequency Band
- • 863-870MHz (EU/EU868), 923-924MHz (APAC/AS923)* Japan Excluded
- Specification
- • Max. Output Power: 14dBm (EU868), 20dBm (AS923)
- • Sensitivity: -132dBm@980bps
- EDGE 2
- • 1 x LTE Cat. M1/NB1 Module
- • 3GPP, Cat. M1/NB1 with PSM (*Power save mode) supported
- Data Transmission
- • Cat. M1: Max. 375Kbps (DL); Max. 375Kbps (UL)
Cat. NB1: Max. 32Kbps (DL); Max. 70Kbps (UL)
- Specification
- • Max. Output Power: 23dBm
- • Sensitivity:
-107dBm@Cat M1, 1.4MHz Bandwidth, CE Mode A
-113dBm@Cat NB1, CE Level 0
I/O Interfaces
- Analog Input
- • 3 x AI ports (supports 0-10V/4-20mA)
- • Conversion: 10bit ADC
- • Input Range: 0-10V, or 4-20mA (Dual mode)
- • Resolution: 10mV, or 20uA (with 2-bit hard-wired divider involved)
- Digital Input
- • 2 x DI ports (Isolated, supports Pulse Counter, Dry Contact)
- Digital Output
- • 1 x DO port (Isolated, Non-Relayed Output, Maximum 24V/300mA)
- Wake-up Port
- • 1 x Internal Reed Switch (EDGE 2) and dedicated wake-up port reserved for device wake-up triggering
- RS-485
- • Support 8 sets Modbus RTU devices
- • Modbus/RTU read command FC 1,2,3,4 and write command FC 5,6 from MQTT or LoRaWAN
I/O Connectors
- • 2 x M16 waterproof connectors with 2-hole cable gland for wiring the required ports to external sensors/meters
Embedded Antennas
- EDGE 1 Series
- • 1 x Internal LoRa Antenna
- EDGE 2 Series
- • 1 x Internal 2dBi Antenna
Log Storage
- Data logging (EDGE 2)
- • 16MB Internal Storage
Power
- • 4000mAh 3.6V Li-SOCL2 battery (Optional), or external 5-12VDC Power Input predefined by Jumper
Mechanical
- Casing
- • Plastic (PC, UL-94V2)
- • IP65
- Dimension
- • 105 x 55 x 76.47mm (W x D x H); Enclosure only
- • 131.97 x 81 x 76.47mm (W x D x H); Including Cable Gland, Brackets
- Weight
- • 0.3Kg (0.66lbs)
- Installation
- • Bracket mounting
Environment Limits
- Operating Temperature
- • -30 to 70°C (-22 to 158°F)
- Storage Temperature
- • -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- • 5% to 95% (non-condensing)
Regulatory Approvals
- Safety
- EN 60950-1
- Emissions/Immunity
- EDGE 1 CE
- EDGE 2 CE/NCC/iDA
