eBOX800-900-FL

Features

• IP67-rating for outdoor use
• NVIDIA® Jetson™ TX2 with Pascal™, 256 CUDA cores GPU
• High AI computing performance for GPU-accelerated processing
• -30°C to +60°C operating temperature range
• 100 to 240 VAC wide range power input with 10kV surge protection

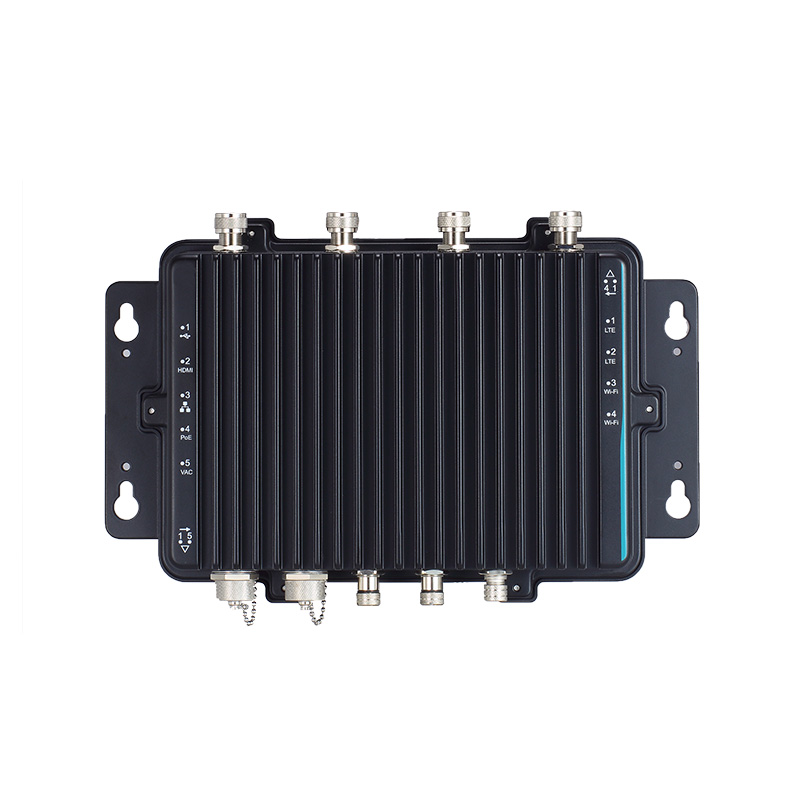

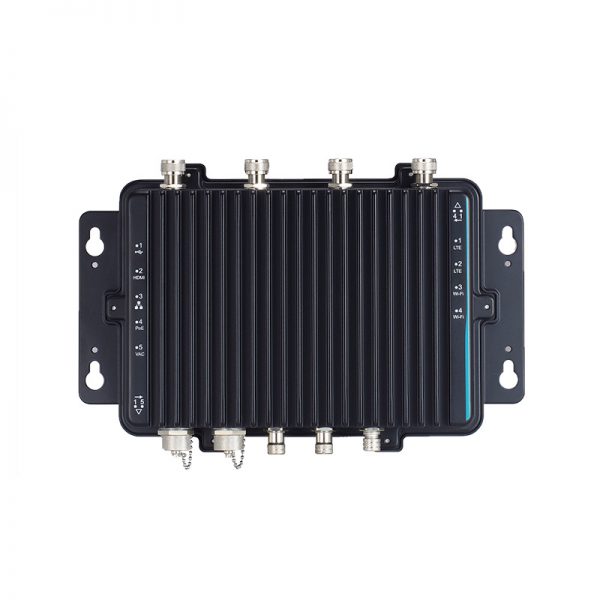

• 4 N-jack antenna openings with waterproof design

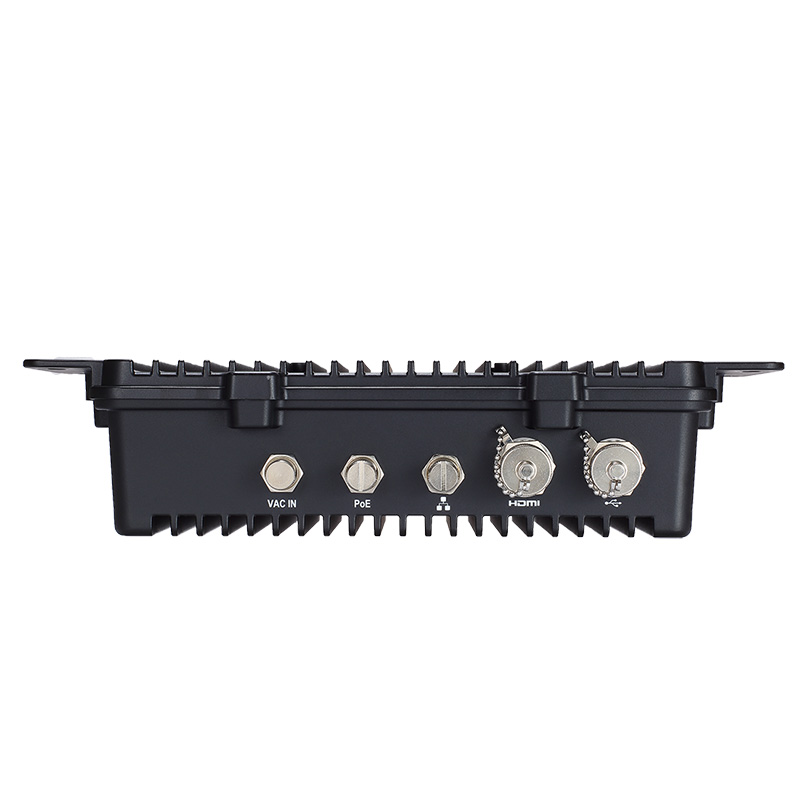

• Features M12 lockable I/Os
• 1 IEEE 802.3at Gigabit LAN port (30W)

Introduction

The Artificial Intelligence (AI) embedded system, eBOX800-900-FL, adopts a full IP67-rated extruded aluminum and heavy-duty steel case for dust protection and water resistance. Moreover, the AI embedded system comes with a wide operating temperature range of -30°C to 60°C (-22°F to +140°F) and a vibration endurance for up to 3Grms. The embedded system is powered by the NVIDIA Jetson™ TX2 module which has a powerful 64-bit ARM A57 processor and 256-core NVIDIA® Pascal GPU. It features M12 type I/O connectors and four N-jack waterproof antenna openings for operational stability in rugged environments. The eBOX800-900-FL is ideal for AI edge computing and deep learning applications, such as smart city, smart manufacturing, smart transportation, and much more. The eBOX800-900-FL has 8GB of LPDDR4 memory and 32GB eMMC onboard. It comes with a wide range of 100 to 240 VAC power input with 10kV surge protection. The rugged edge computer also features one M.2 SSD PCIe 2.0 x4 socket which supports high-performance NVM Express interface for extensive storage needs. Furthermore, the embedded box PC is equipped with a PoE port to support the applications that require the use of IP cameras or any PoE device, i.e., traffic flow monitoring, license plate recognition, vehicle recognition, machine vision.
