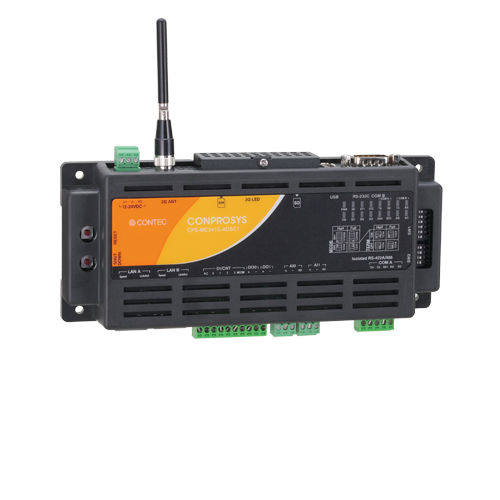

CPS-MC341G-ADSC1-111
CONPROSYS M2M Controller – Integrated Type / 3G WAN / 1x LAN + HUB / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485
This product is a controller equipped with isolated RS-422A / 485, isolated digital input / output, isolated counter input, inter-channel isolated analog input, RS-232C, LAN interface, and 3G communication module. With the CONPROSYS series, it is possible to collect data from various types of equipment and centrally manage it. It is equipped with an ARM® Cortex®-A8 processor (600MHz), onboard 512MB DDR3-SDRAM system memory, and uses onboard NOR-FLASH as the boot device. In addition, this product realizes everything from development to operation by operating a Web browser. Equipped with functions such as Web monitoring of I / O information, alarm processing based on I / O information, and task branching, you can build a cloud system at low cost and in a short time.
Controller unit
| Communication Ports | Ethernet (LAN); 3G Wireless (WAN) |
|---|---|
| Programming | CONPROSYS VTC |
| Stack bus | – |
| Function | CDS data transfer (https); Modbus/TCP slave |
Digital I/O
| Input Channels | 4-ch |
|---|---|
| Output Channels | 2-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200μsec (max.) |
| Response Time (Output) | 2msec (max.) |
| Operating Voltage (Input) | – |
| Operating Voltage (Output) | – |
| Input Circuit | Opto-isolated input (for sink current output) |
| Output Circuit | Semiconductor relay output |
| Built-in Power Supply | 12VDC |
Analog I/O
| Input Channels | Differential 2-ch |
|---|---|
| Input Range | 0 to 20mA |
| ADC Resolution | 12-bit |
| Sampling Rate | |
| Buffer Memory | |
| Output Channels | – |
| Output Range | – |
| DAC Resolution | – |
| Update rate | – |
Counter
| Number of Channels | 2-ch |
|---|---|
| Counting System | 24-bit Up count |
| Response speed | 1KHz |
Serial comm.
| Number of Channels | 1x RS-232C [ASYNC]; 1x RS-232C/422A/485 [ASYNC] |
|---|---|
| Transmission Speed | 300 ~ 115,200bps |
| Isolation Property | |
| Transmission Method |
