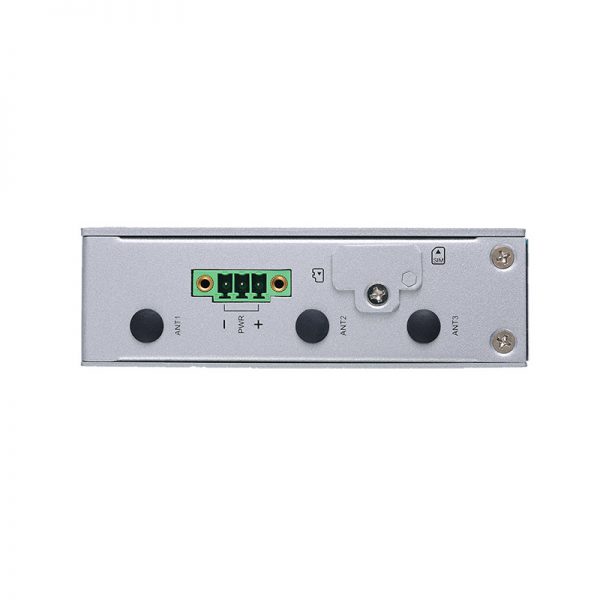

Agent200-FL-DC

Agent200-FL-DC

Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, 1 COM, 1 LAN, DIO (4-in/4-out) and CANBus

Features

CPU	NXP i.MX 6UL processor, ARM® Cortex®-A7 @ 528 MHz
Chipset	SoC Integrated
System Memory	256 MB DDR3-1600 onboard
COM	1 x RS-232/422/485
USB	1 x USB 2.0
Ethernet	1 x 10/100 Mbps Ethernet Magnetic isolation protection 1.5KV
PoE	N/A
CANbus	1 x CANBus
Digital I/O	1 x DIO (4-in/4-out)
Analog Input	N/A
Display	N/A
Wireless	2 x PCI Express Mini Card slot (USB signal only) 1 x SIM card socket
Storage	1 x eMMC 4GB flash onboard 1 x Micro SD card slot
Others	1 x EEPPROM (2 Kb)
Power Supply	9 to 48 VDC power input range
Watchdog Timer	WDT 1: 0.5 to 128 sec. with a time resolution of 0.5 sec.
Construction	Extruded aluminum and heavy-duty steel, IP40
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Relative Humidity	10% to 95%
Vibration	2 Gms @ (10 to 150Hz random; operation)
Dimensions (W x D x H)	31 x 100 x 125 mm (1.22″ x 3.94″ x 4.92″)
Weight (net/gross)	0.3 kg (0.66 lb)/0.44 kg (0.97 lb)
Certifications	CE, FCC
EOS Support	Yocto Sumo
Mounting	DIN-rail, Wall mount
