eBOX100-312-FL

Features

• Intel® Celeron® N3350 2.4 GHz & Pentium® N4200 2.5 GHz
• Supports 2 HDMI, 1 COM, 6 USB and 2 GbE LAN
• 2 PCI Express Mini Card slots for WLAN and WWAN
• One swappable 2.5″ SATA HDD drive bay
• Supports Jumbo Frame (9k), WoL, PXE Remote Boot
• Suitable for smart retail and light industries

Introduction

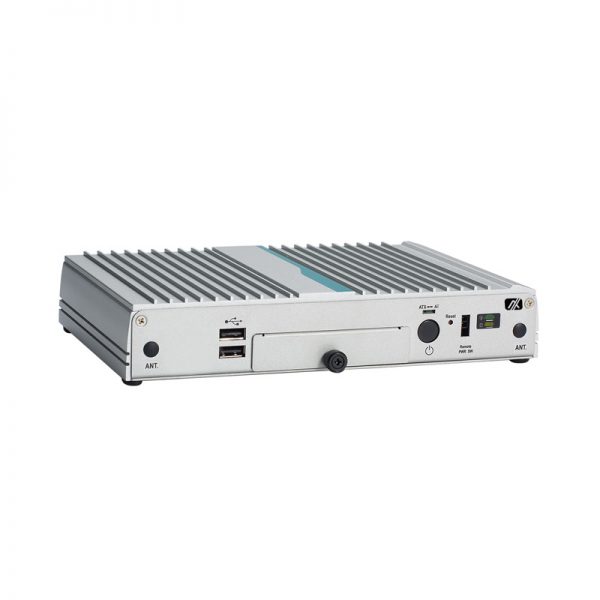

The eBOX100-312-FL comes with ultra-slim size, low power consumption and fundamental features. The fanless embedded system is powered by the Intel® Celeron® processor N3350 or /Pentium® processor N4200 (codename: Apollo Lake). It is equipped with one 204-pin DDR3L-1600 SO-DIMM socket with up to 8GB system memory. In order to provide excellent multimedia performance, the embedded box computer comes with two HDMI ports for dual-view display with up to 4K resolution. To enhance wireless communication capabilities, this compact embedded system provides two PCI Express Mini Card slots, one SIM card slot, and four antenna connectors. With its compact size and basic functions, the entry-level eBOX100-312-FL is suitable for smart retail and light industries.
